AMT Pump model 489A-97 Parts
PARTS LIST for AMT Pump model # 489A-97 Pump:

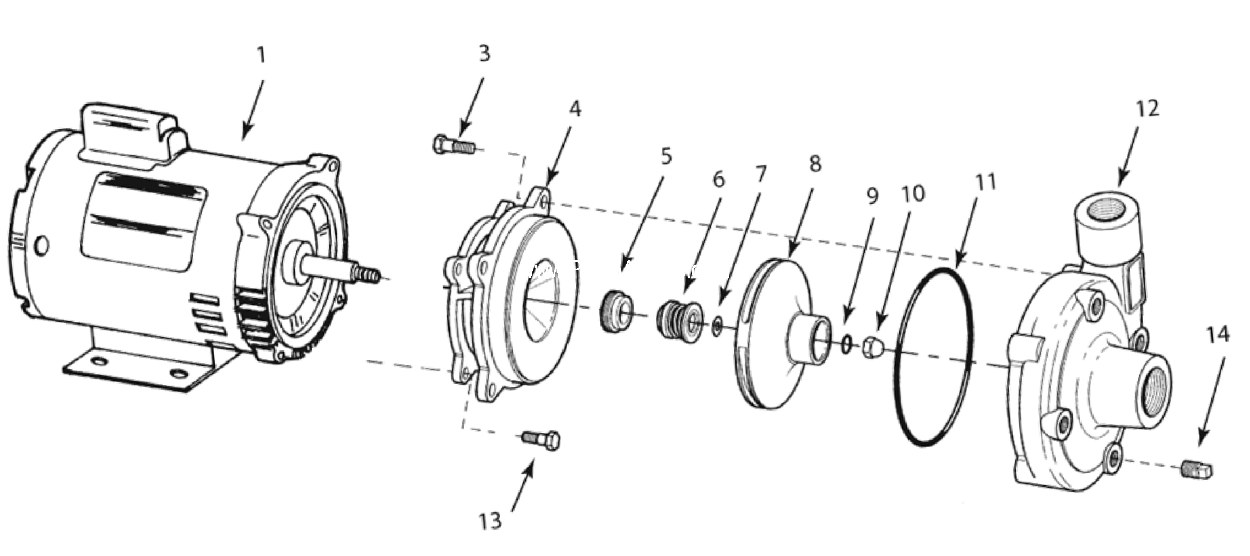

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the AMT Pump 489A-97 Product Page )
Item 1
(on image above)
Motor
Motor, 1-1/2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
$ 644.76 / each
Item 4
(on image above)
Adapter - Bronze
$ 372.60 / each
Item 56
(on image above)
Seal
Mechanical Seal, Viton, Type 21, size 5/8 Inch
$ 54.00 / each
Item 7
(on image above)
Impeller Shim Set
$ 8.10 / each
Item 9
(on image above)
Impeller Seal - Viton
$ 9.45 / each
Item 10
(on image above)
Impeller Fastener
$ 14.85 / each
Item 11
(on image above)
Casing Seal - Viton
$ 22.68 / each
Item 12
(on image above)
Casing
Casing - Bronze
$ 620.46 / each
