AMT Pump # 4897-98 Parts Order page

( Click Here for the AMT Pump # 4897-98 Product Page )
Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.
Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart Shopping Cart Icon Arrow Proceed to Checkout Secure Lock Arrow

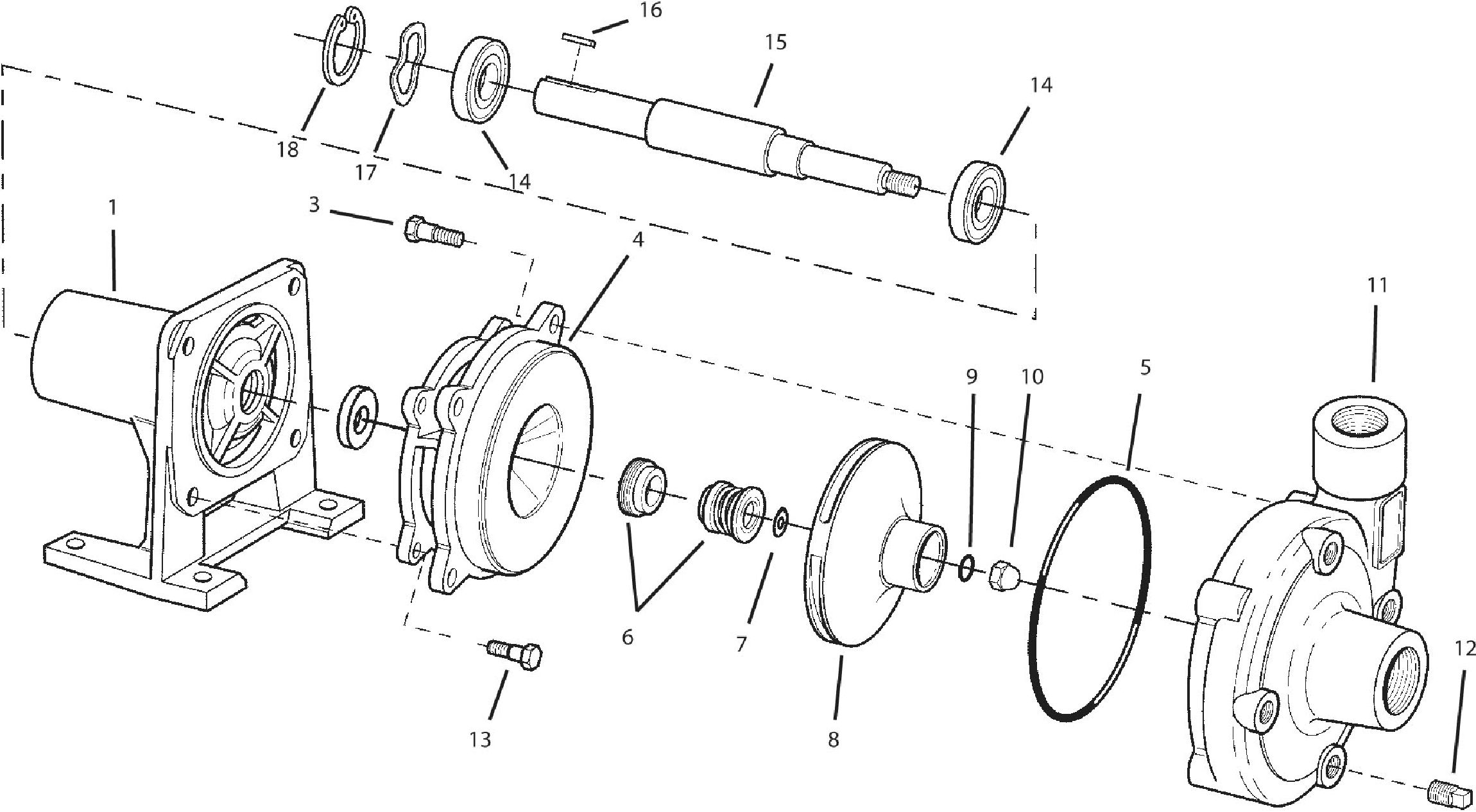

Parts List for AMT Pump model # 4897-98
Key Part # Description Price Stock Required Quantity Action
1 # 3890-090-09 Pedestal/Bearing Housing $105.60 2 in Stock 1
4 # 4890-030-98 Adapter Kit - Stainless Steel, includes Adapter, and Hex Head Cap Screws. $300.30 2 in Stock 1
6 # 1640-161-96 Mechanical Seal, Buna-N, Type 21, size 5/8 Inch $24.20 5 in Stock 1
7 # 1806-044-90 Impeller Shim Kit $6.60 6 in Stock 1
8 # 4891-010-98 Impeller Kit, includes Impeller, Impeller Shim, and Acorn Nut. $170.50 2 in Stock 1
10 # 1784-001-00 7/16-20 Acorn Nut $12.10 2 in Stock 1
11 # 4890-001-95 Casing Kit - Cast Iron, includes Casing, Pipe Plug and Hex Head Cap Screws. $165.00 2 in Stock 1
14 # 1695-031-00 Ball Bearing $26.40 2 in Stock 2
15 # 1696-066-00 Shaft $129.80 2 in Stock 1
16 # 1517-000-00 Shaft Key $6.60 4 in Stock 1
17 # 1806-023-00 Wave Washer $6.60 2 in Stock 1
18 # 1695-034-00 Snap Ring $6.60 2 in Stock 1
19 # 1696-008-90 Bearing Shim Kit $6.60 2 in Stock 1
20 # 1696-075-00 Thread Sealant $25.30 2 in Stock 1
KIT # 4890-300-90 O-Ring Kit - Buna N, includes all O-Rings. $12.10 20 in Stock 1

Your Parts Order List (so far)
