AMT Pump # 4872-95 Parts Order page( Click Here for the AMT Pump # 4872-95 Product Page ) |
|

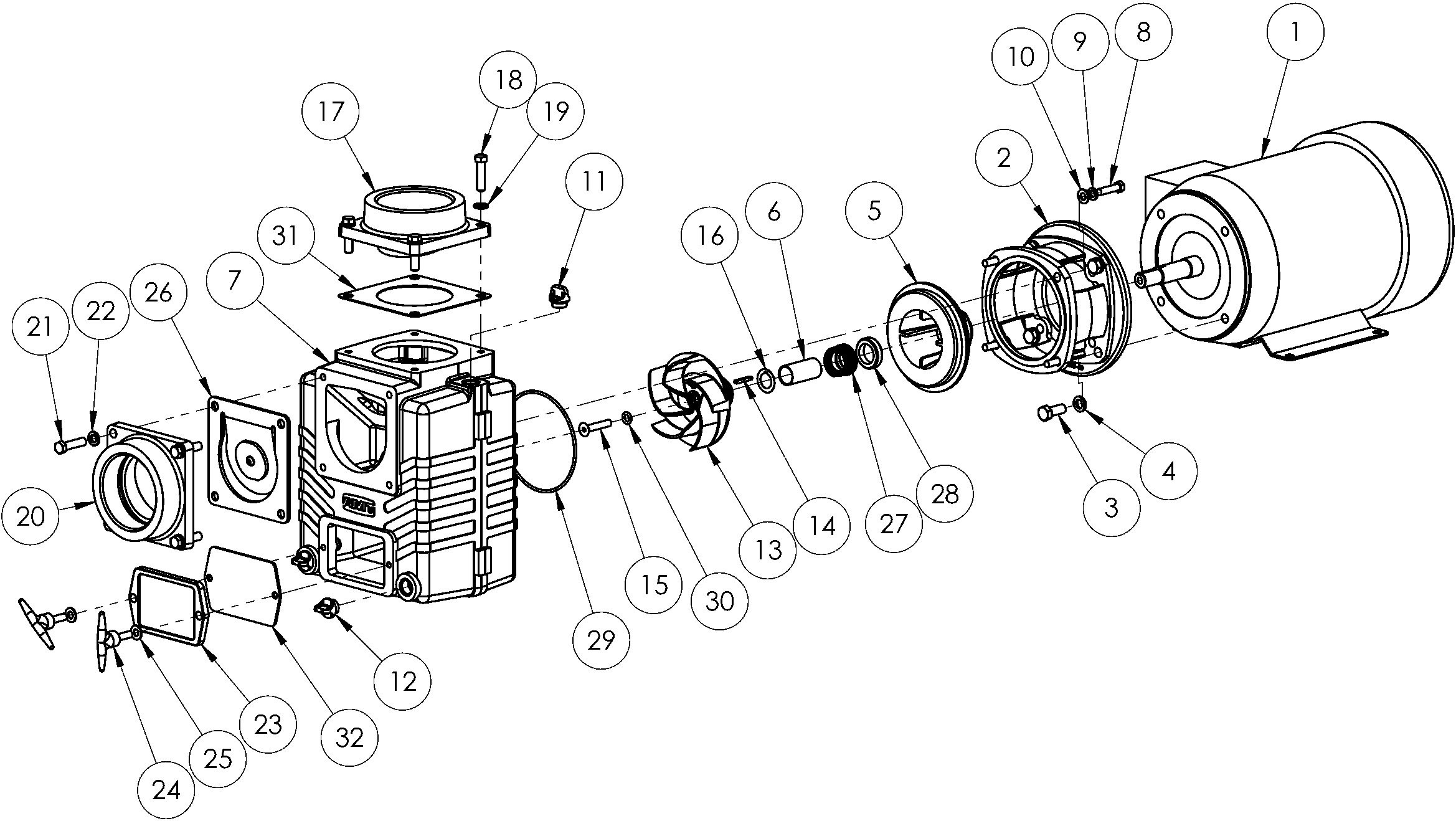

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 4872-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 4872-K5 | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $2370.00 | 1 in Stock | 1 | ||
| 1 | # 1627-355-00 | Motor, 15 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 215JM Frame, replacement electric motor only (pump is not included) | $2511.60 | 1 in Stock | 1 | ||
| 2 | # 3150-035-95 | Adapter Kit, includes Adapter, Hex Head Screws, Lock Washers, Casing Cover, and Shaft Sleeve. | $480.00 | 2 in Stock | 1 | ||
| 5 | # 3150-025-09 | Casing Cover | $270.00 | 2 in Stock | 1 | ||
| 6 | # 1555-142-00 | Shaft Sleeve | $42.00 | 10 in Stock | 1 | ||
| 7 | # 4870-002-95 | Casing Kit, includes Casing, Hex Head Screws, Lock Washers, Flat Washers, and plugs. | $939.60 | 2 in Stock | 1 | ||
| 13 | # 4872-010-98 | Impeller Kit, includes Impeller, Shaft Key, Impeller Screw, and Impeller Shim. | $492.00 | 2 in Stock | 1 | ||
| 17 | # 4870-080-95 | Discharge Flange Kit, includes Discharge Flange, Hex Head Screws, and Lock Washers. | $214.80 | 2 in Stock | 1 | ||
| 20 | # 4870-050-95 | Suction Flange Kit, includes Suction Flange, Hex Head Screws, and Lock Washers. | $214.80 | 2 in Stock | 1 | ||
| 23 | # 4870-040-95 | Cleanout Cover Kit, includes Cleanout Cover, Hex Head Screws, and Flat Washers. | $73.20 | 2 in Stock | 1 | ||
| 26 | # 399C-070-90 | Check Valve Assembly - Neoprene | $61.20 | 2 in Stock | 1 | ||
| 27+28 | # 1640-163-90 | Mechanical Seal, Buna-N/Carbon/Ceramic, Type 21, size 1-1/8 Inch | $40.80 | 3 in Stock | 1 | ||
| KIT | # 4870-300-90 | Gasket Kit - Buna/Neoprene | $30.00 | 20 in Stock | 1 | ||
