AMT Pump model 4786-95 Parts( Click Here for the AMT Pump 4786-95 Product Page ) |
|

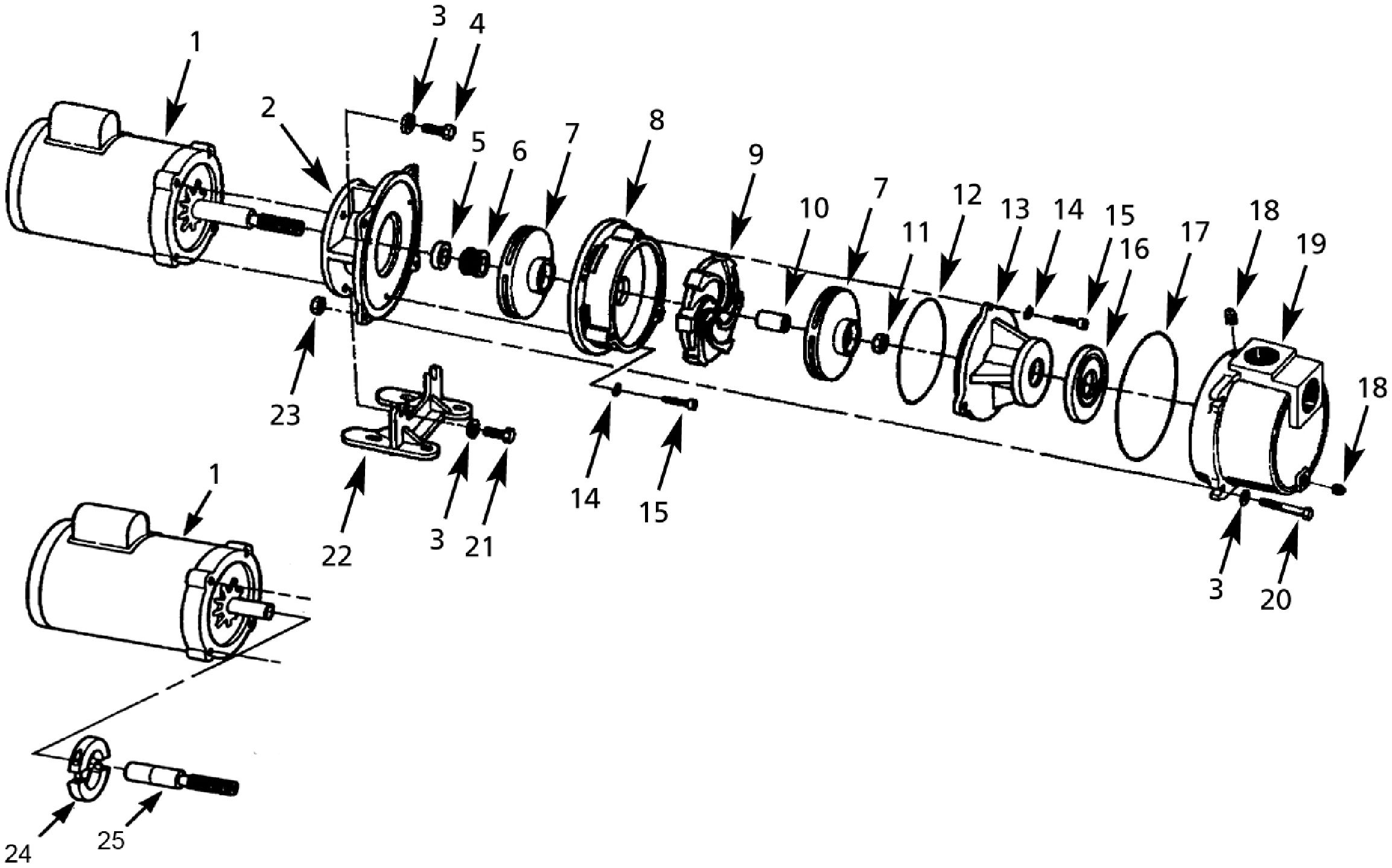

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 4786-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 4786-K5 | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $1026.30 | 1 in Stock | 1 | ||
| 1 | # 1627-094-90 | Motor, 3 Horsepower, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56C Frame, replacement electric motor only (pump is not included) | $828.30 | 1 in Stock | 1 | ||
| 2 | # 4780-031-95 | Adapter Kit, includes Ref. Nos. 2, 3 and 4) | $181.50 | 2 in Stock | 1 | ||
| 5+6 | # 1640-162-90 | Mechanical Seal, Buna-N/Carbon/Ceramic, Type 6, size 3/4 Inch | $16.50 | 3 in Stock | 1 | ||
| 7 | # 4785-011-98 | Impeller Kit (2 per kit) | $269.50 | 2 in Stock | 1 | ||
| 8 | # 4780-150-95 | Diffuser Kit, includes Diffuser, Screws and Lock Washers. | $180.40 | 2 in Stock | 1 | ||
| 9 | # 4780-155-95 | Diffuser/Crossover | $135.30 | 2 in Stock | 1 | ||
| 10 | # 4780-141-00 | Shaft Sleeve | $23.10 | 2 in Stock | 1 | ||
| 11 | # 4780-144-00 | Shaft Hex Nut | $22.00 | 2 in Stock | 1 | ||
| 12 | # 4780-300-94 | Gasket/O-Ring Kit - Buna-N, includes O-Rings, and Suction Gasket. | $29.70 | 20 in Stock | 1 | ||
| 13 | # 4780-220-95 | Suction Inlet Kit, includes Suction Inlet, Screws, and Lock Washers. | $157.30 | 2 in Stock | 1 | ||
| 19 | # 4780-002-95 | Casing Kit, includes Casing, Pipe Plugs, and Bolts. | $247.50 | 2 in Stock | 1 | ||
| 22 | # 1506-000-00 | Mounting Base (foot) | $18.70 | 2 in Stock | 1 | ||
