AMT Pump model 4443-95 Parts( Click Here for the AMT Pump 4443-95 Product Page ) |
|

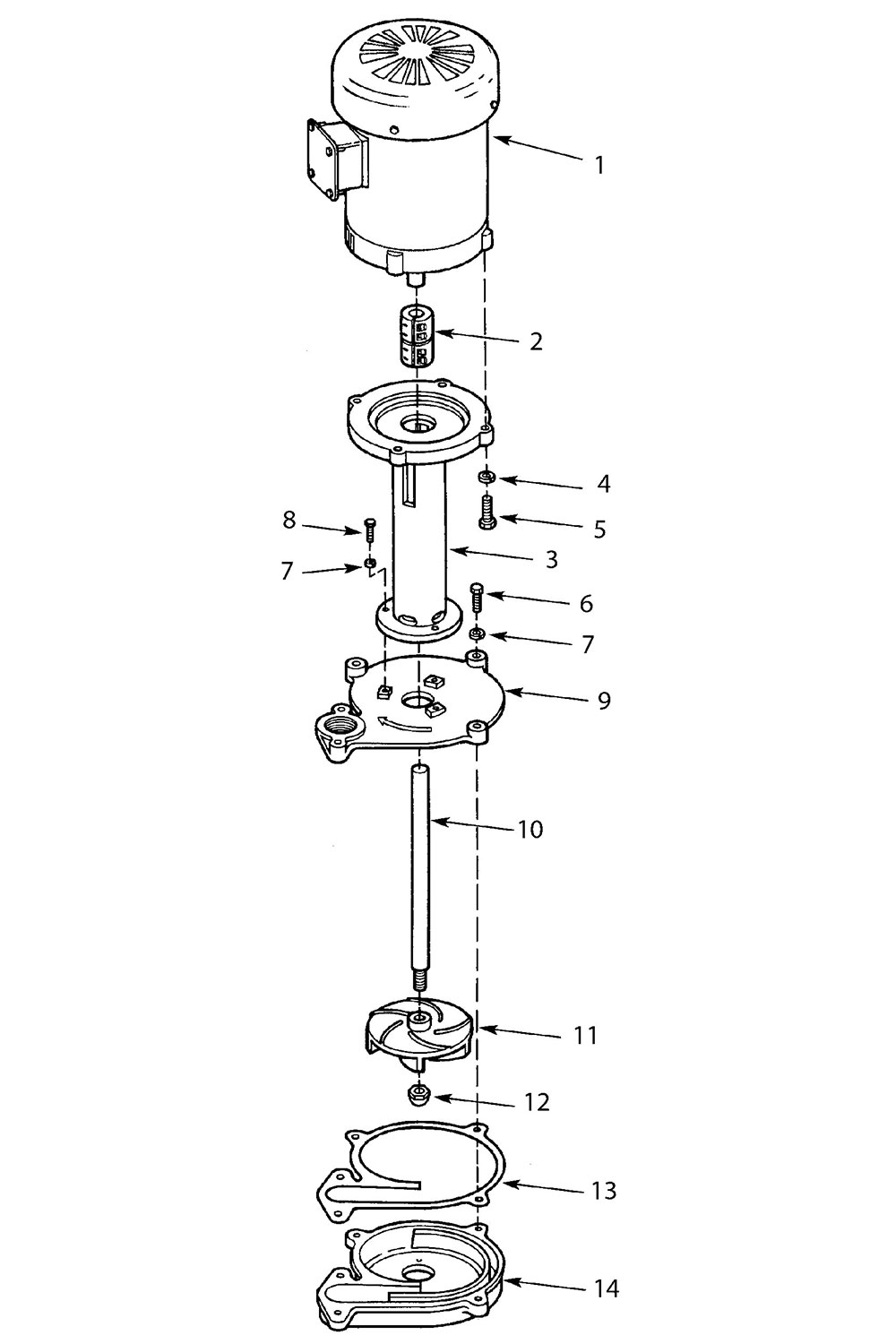

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 4443-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1626-022-00 | Motor, 3/4 Horsepower, 1725 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz, Nema 56J Frame, replacement electric motor only (pump is not included) | $605.00 | 1 in Stock | 1 | ||
| 2 | # 4430-143-00 | Coupling | $82.50 | 2 in Stock | 1 | ||
| 4 | # 1793-009-00 | 3/8 Split Lock Washer, Stainless Steel | $6.60 | 2 in Stock | 4 | ||
| 5 | # 1757-001-00 | 3/8-16 UNCx 11/4 Cap Screw, Stainless Steel | $6.60 | 2 in Stock | 7 | ||
| 6 | # 1718-003-00 | 1/4-20 UNC x 1 Cap Screw, Stainless Steel | $6.60 | 2 in Stock | 7 | ||
| 7 | # 1788-001-00 | 1/4 Split Lock Washer, Stainless Steel | $6.60 | 2 in Stock | 10 | ||
| 8 | # 1718-003-00 | 1/4-20 UNC x 1 Cap Screw, Stainless Steel | $6.60 | 2 in Stock | 3 | ||
| 9 | # 4440-021-95 | Volute/Column Kit, includes Column, Volute, Shaft, Coupling, Cap Screws, and Lock Washers. | $289.30 | 2 in Stock | 1 | ||
| 10 | # 4430-142-00 | S.S. Shaft | $92.40 | 2 in Stock | 1 | ||
| 11 | # 4440-012-98 | Impeller, includes Impeller, and Acorn Nut. | $128.70 | 2 in Stock | 1 | ||
| 13 | # 4440-300-00 | Gasket | $6.60 | 20 in Stock | 1 | ||
| 14 | # 4440-001-09 | Volute | $110.88 | 2 in Stock | 1 | ||
