AMT Pump model 4430-95 Parts
PARTS LIST for AMT Pump model # 4430-95 Pump:
( Click Here for the AMT Pump 4430-95 Product Page )
Item 1

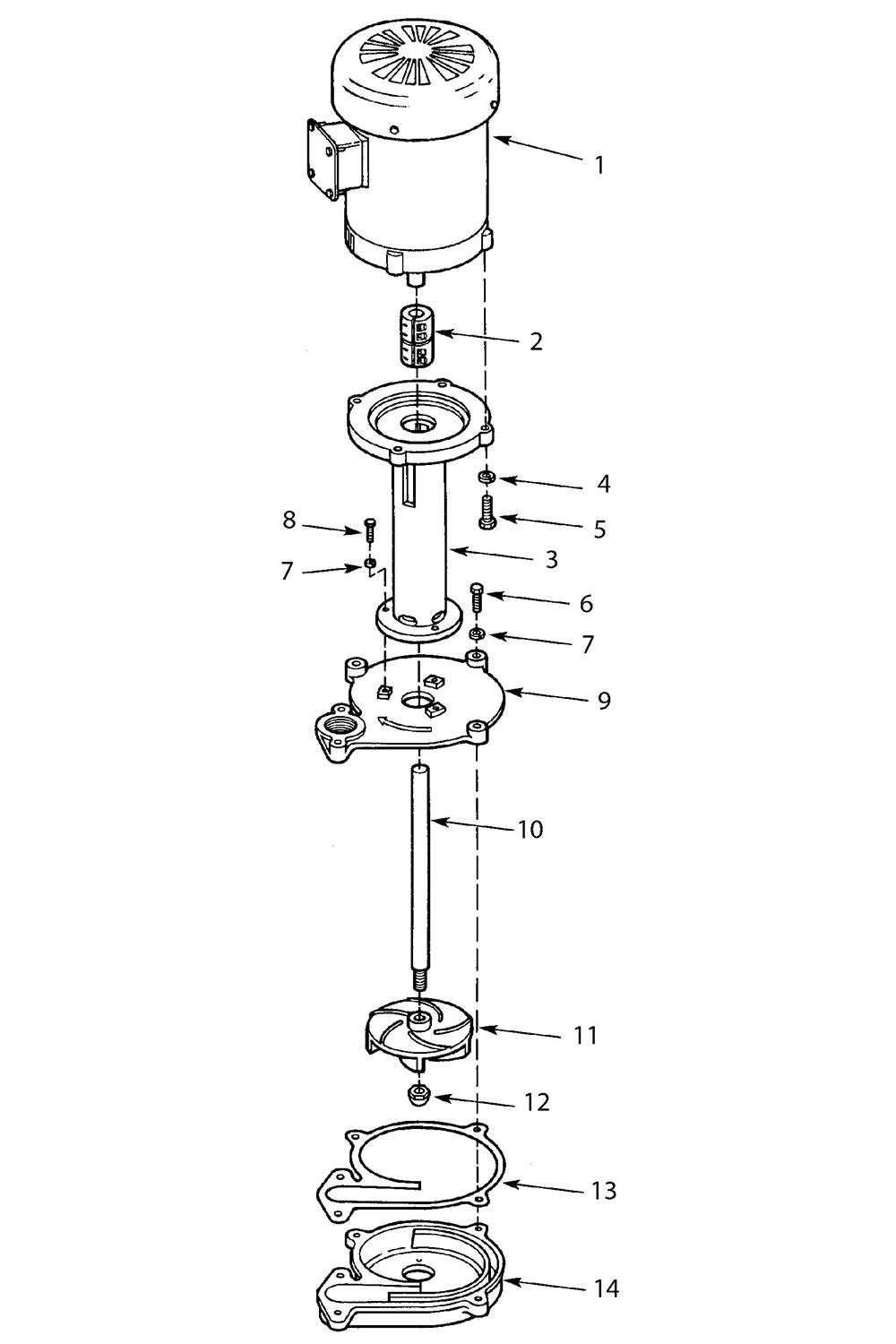

(on image above)
Motor
Motor, 1/3 Horsepower, 1725 RPM, Volts, TEFC Totally Enclosed Fan Cooled, 60/50 Hz, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 442.26 / each
Item 2
(on image above)
Coupling
$ 121.50 / each
Item 4
(on image above)
3/8 Split Lock Washer S.S.
$ 9.72 / each
Item 5
(on image above)
3/8-16 UNC x 11/4 Cap Screw S.S
$ 9.72 / each
Item 6
(on image above)
1/4-20 UNC x 1 Cap Screw S.S.
$ 9.72 / each
Item 7
(on image above)
1/4 Split Lock Washer S.S.
$ 9.72 / each
Item 8
(on image above)
1/4-20 UNC x 1 Cap Screw S.S.
$ 9.72 / each
Item 9
(on image above)
Volute/Column Kit. Includes : 3/8-16 UNC x 11/4 Cap Screw S.S (Ref. 5), 1/4-20 UNC x 1 Cap Screw S.S (Ref. 6), 1/4 Split Lock Washer S.S (Ref. 7), 1/4-20 UNC x 1 Cap Screw S.S (Ref. 8)
$ 226.80 / each
Item 10
(on image above)
S.S. Shaft
$ 82.62 / each
Item 12
(on image above)
7/16-20 UNF Acorn Nut S.S.
$ 14.85 / each
Item 13
(on image above)
Gasket
$ 9.72 / each
