Parts for AMT Pump model # 430A-95

Item 1
(on image above)

Part # 430A-001-95

Casing

Casing Kit

$ 1550.34 / each

Item 2
(on image above)

Part # 430A-010-97

Impeller

Impeller Kit. Includes : Impeller Washer (Ref. 8), Impeller Screw (Ref. 9), Impeller Key (Ref. 10)

$ 1093.50 / each

Item 5
(on image above)

Part # 430A-030-95

Volute Cover Kit. Includes : Volute Cover Kit (Ref. 5)

$ 871.56 / each

Item 6
(on image above)

Part # 427B-140-90

Shaft Sleeve

$ 257.58 / each

Item 7
(on image above)

Part # 1627-373-00

Motor

Motor, 30 Horsepower, 1750 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 286JM Frame, replacement electric motor only (pump is not included)

$ 5783.40 / each

Item 12
(on image above)

Part # 427A-160-90

Seal

Seal & Deflector Kit. Includes : Deflector Kit (Ref. 11), Seal & Deflector Kit (Ref. 12)

$ 243.00 / each

Item 13
(on image above)

Part # 427B-300-90

Gasket Kit

$ 118.26 / each

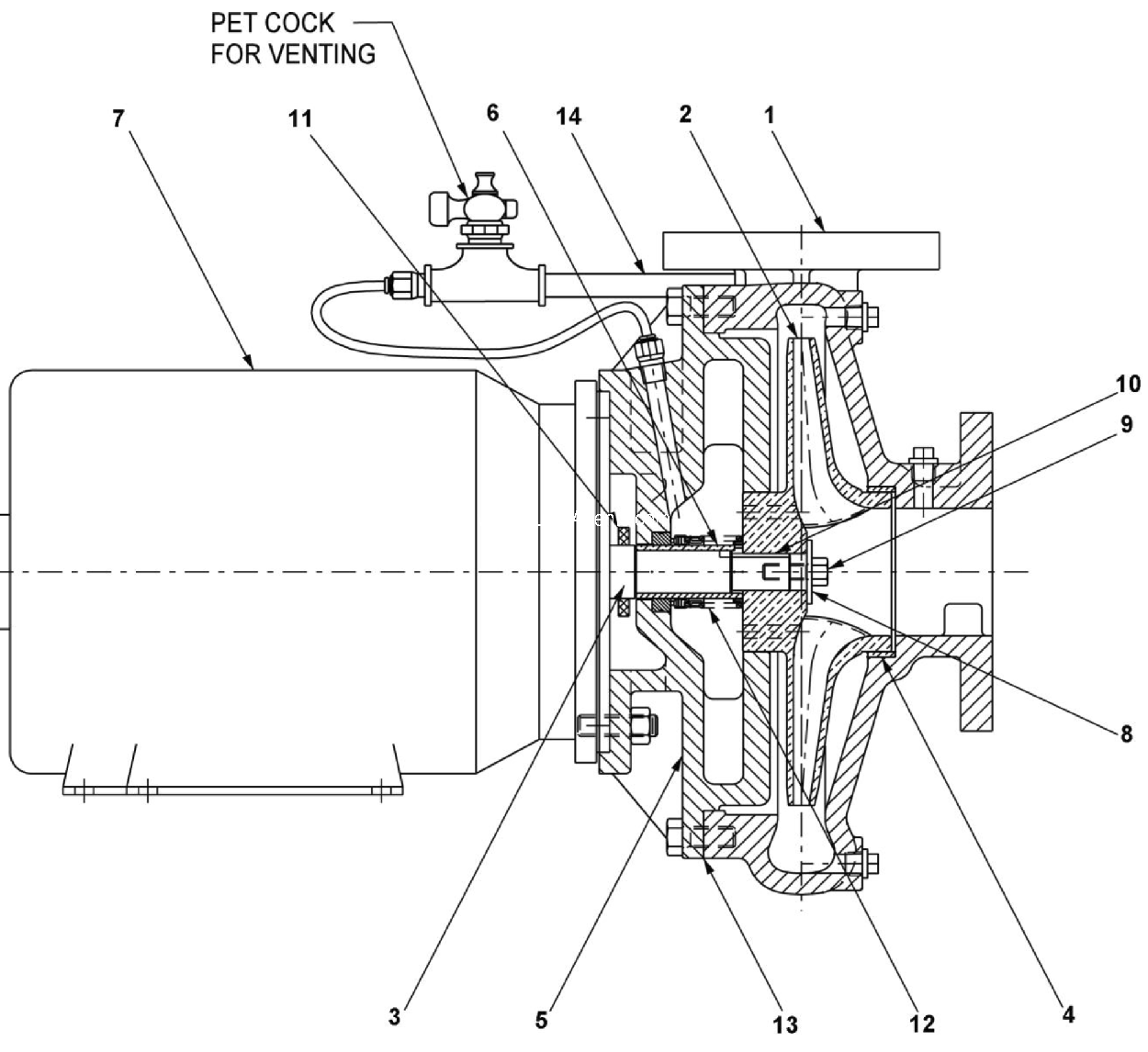

AMT Pump model 430A-95 Parts
