AMT Pump model 4297-98 Parts
PARTS LIST for AMT Pump model # 4297-98 Pump:

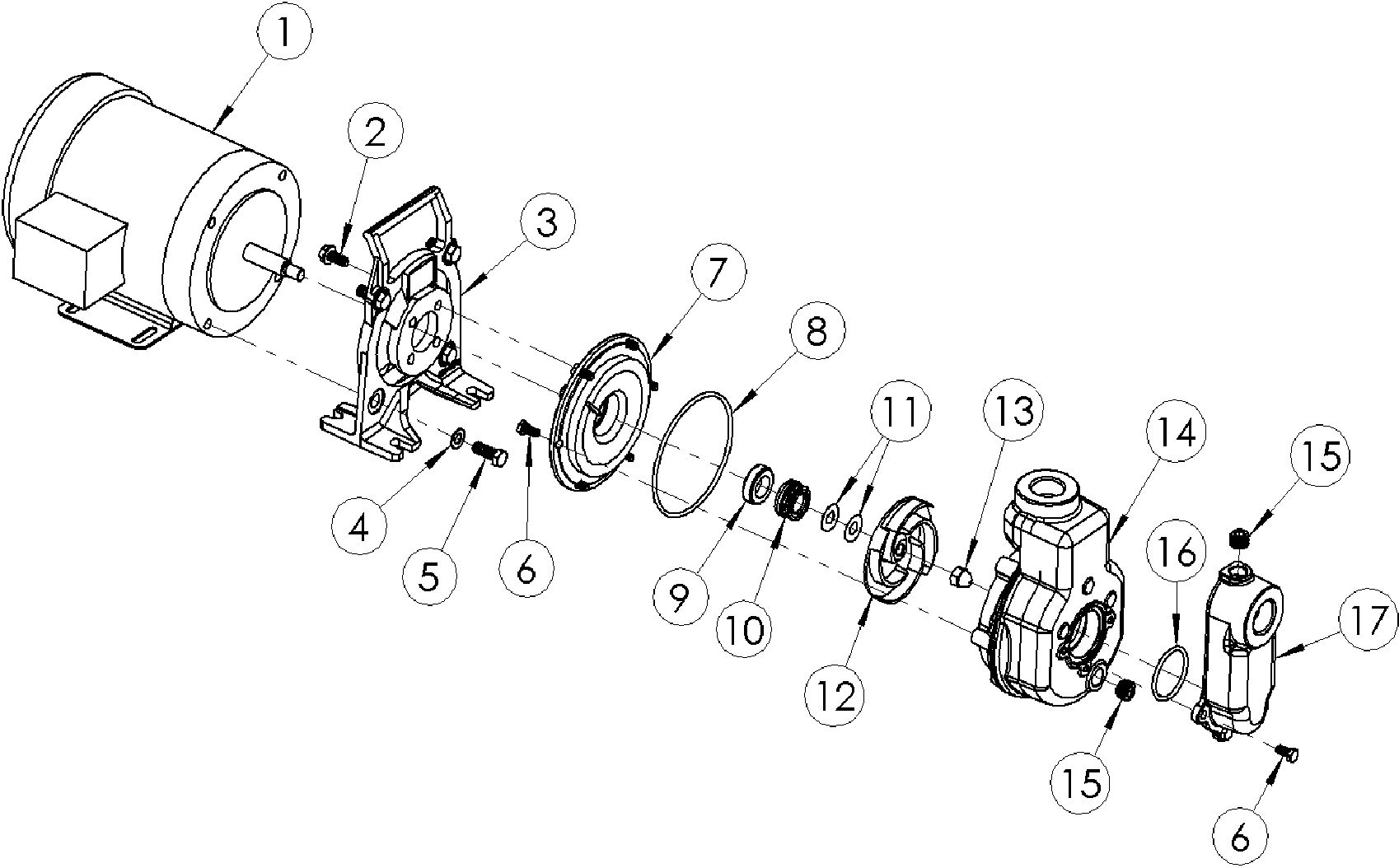

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the AMT Pump 4297-98 Product Page )
Item 1
(on image above)
Motor
Motor, 1 Horsepower, 115/230 Volts, 1 Phase, ODP Open Drip Proof, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
$ 405.00 / each
Item 3
(on image above)
Adapter
$ 106.92 / each
Item 6
(on image above)
Casing Cover
$ 174.96 / each
Item 89
(on image above)
Seal
Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 58.05 / each
Item 10
(on image above)
Impeller Shim Kit
$ 14.85 / each
Item 16
(on image above)
Impeller Fastener
$ 14.85 / each
Item KIT
(on image above)
None
O-Ring Kit - Viton. Includes : Casing O-Ring - Viton (Ref. 7), Impeller O-Ring - Viton (Ref. 15)
$ 14.85 / each
