AMT Pump model 427B-95 Parts
PARTS LIST for AMT Pump model # 427B-95 Pump:

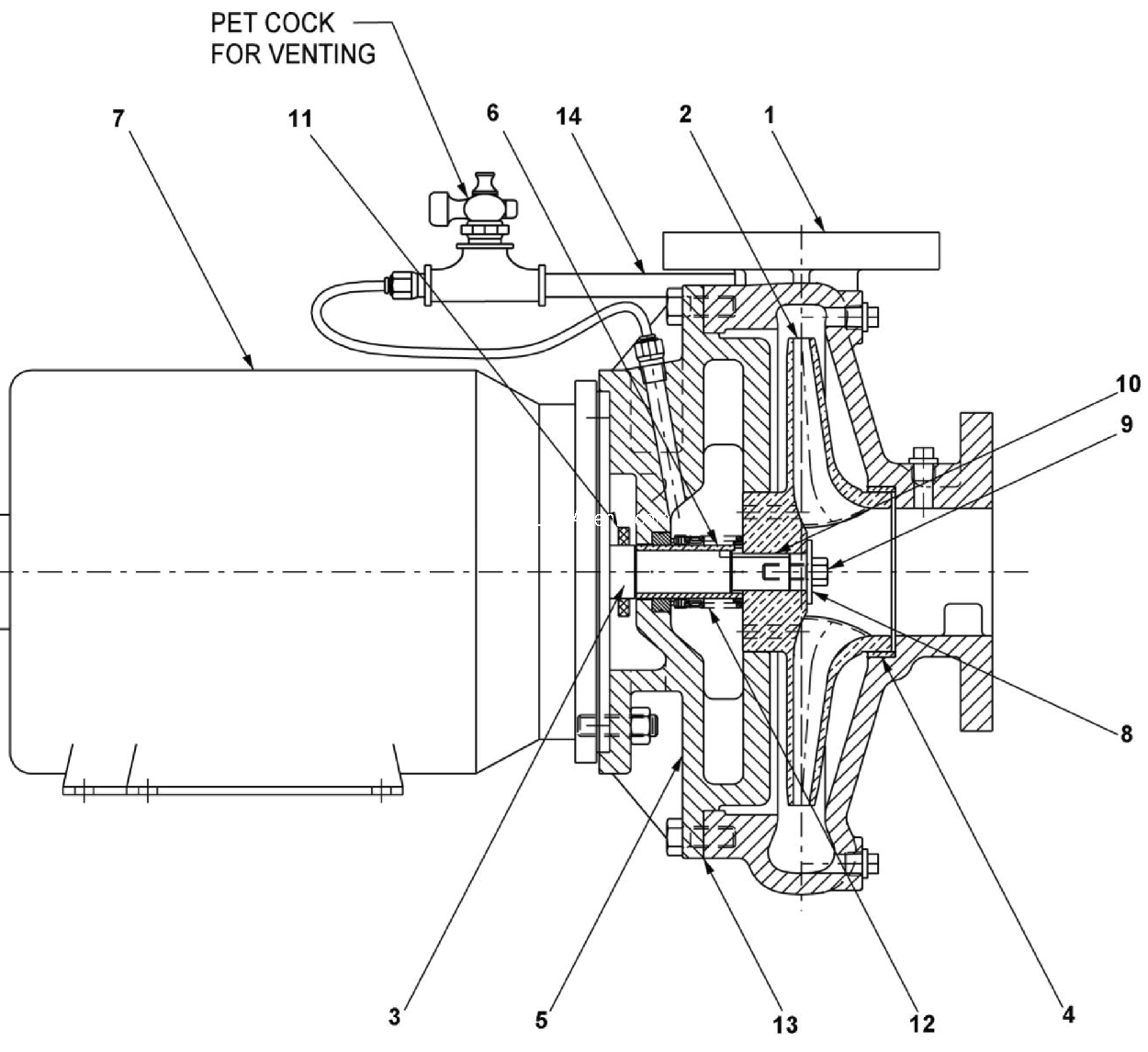

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the AMT Pump 427B-95 Product Page )
Item 2
(on image above)
Impeller
Impeller Kit. Includes : Impeller Washer (Ref. 8), Impeller Screw (Ref. 9), Impeller Key (Ref. 10)
$ 1263.60 / each
Item 5
(on image above)
Volute Cover Kit. Includes : Volute Cover Kit (Ref. 5)
$ 706.32 / each
Item 6
(on image above)
Shaft Sleeve
$ 257.58 / each
Item 12
(on image above)
Seal
Seal & Deflector Kit. Includes : Deflector Kit (Ref. 11), Seal & Deflector Kit (Ref. 12)
$ 243.00 / each
Item 13
(on image above)
Gasket Kit
$ 118.26 / each
