Parts for AMT Pump model # 427A-95

Item 1
(on image above)

Part # 427A-001-95

Casing

Casing Kit

$ 1344.60 / each

Item 2
(on image above)

Part # 427A-010-97

Impeller

Impeller Kit. Includes : Impeller Washer (Ref. 8), Impeller Screw (Ref. 9), Impeller Key (Ref. 10)

$ 1652.40 / each

Item 5
(on image above)

Part # 427A-030-95

Volute Cover Kit. Includes : Volute Cover Kit (Ref. 5)

$ 751.68 / each

Item 6
(on image above)

Part # 427A-140-90

Shaft Sleeve

$ 278.64 / each

Item 7
(on image above)

Part # 1627-371-00

Motor

Motor, 15 Horsepower, 1750 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 254JM Frame, replacement electric motor only (pump is not included)

$ 3434.40 / each

Item 12
(on image above)

Part # 427A-160-90

Seal

Seal & Deflector Kit. Includes : Deflector Kit (Ref. 11), Seal & Deflector Kit (Ref. 12)

$ 243.00 / each

Item 13
(on image above)

Part # 427A-300-90

Gasket Kit

$ 118.26 / each

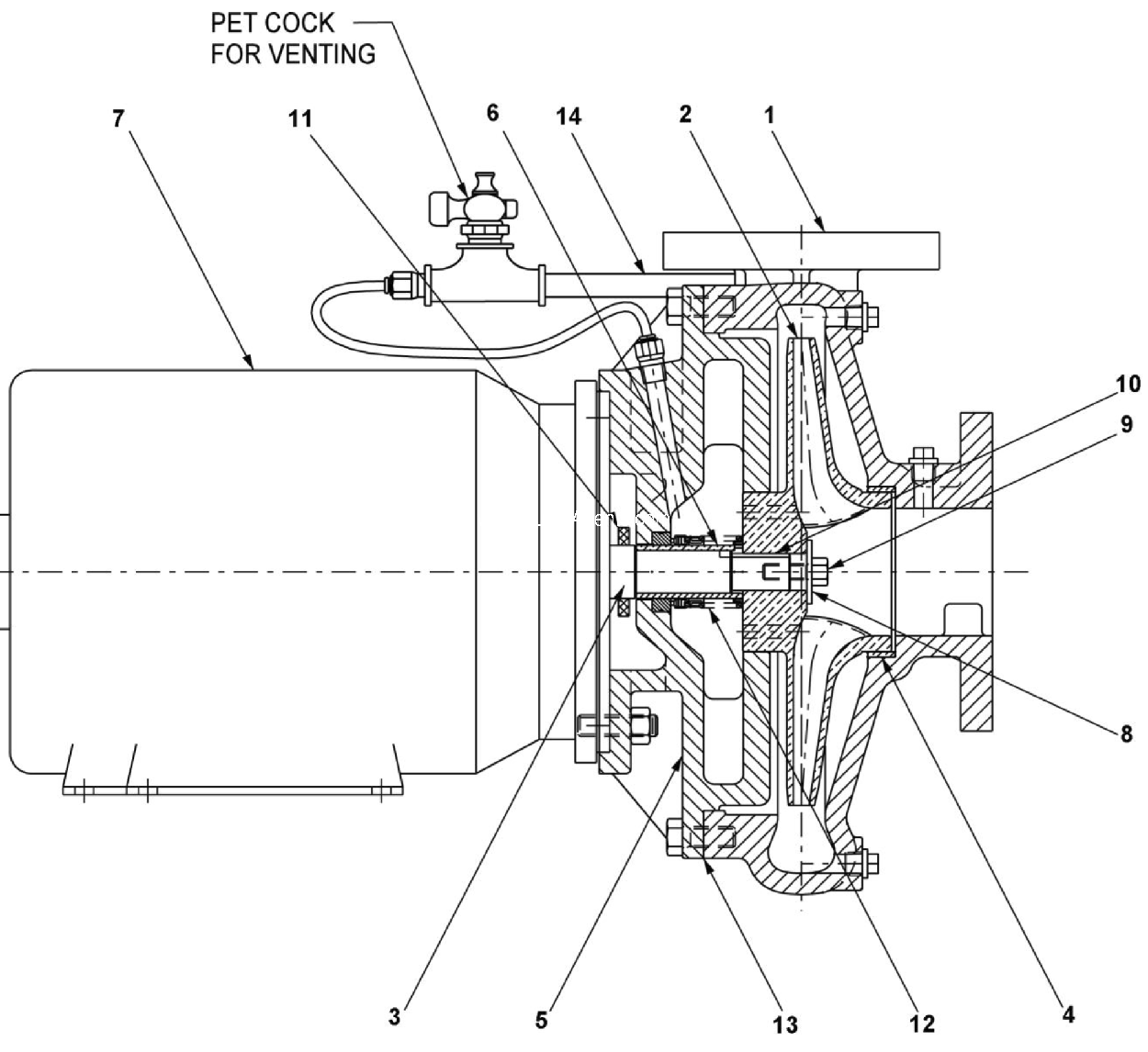

AMT Pump model 427A-95 Parts
