AMT Pump # 399C-95 Parts Order page |
|

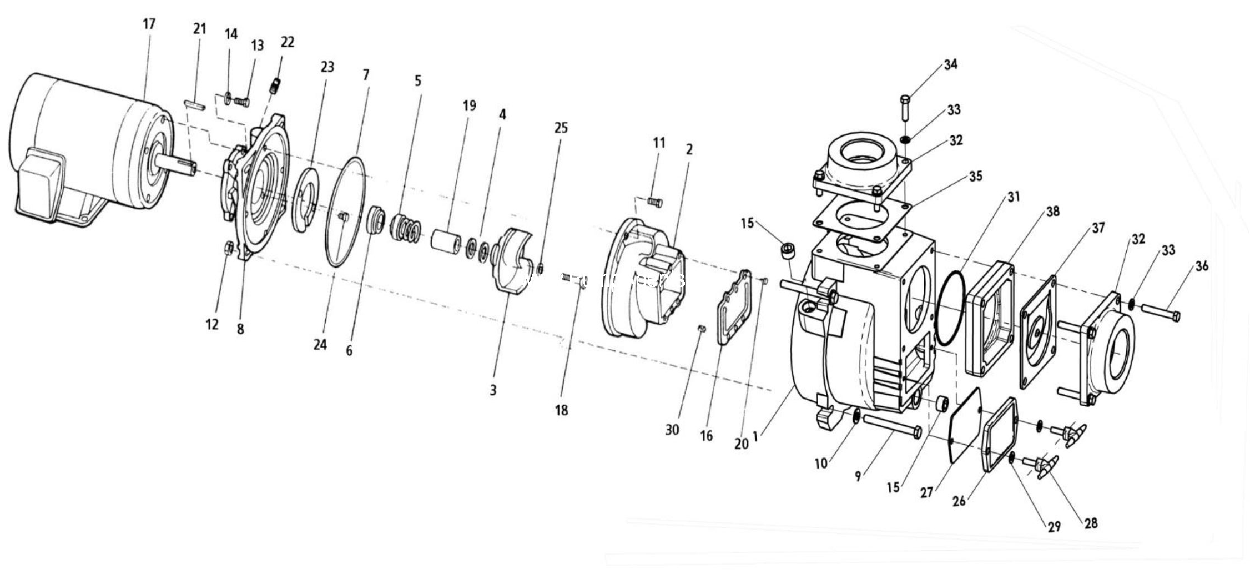

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 399C-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 399C-150-95 | Volute Kit. Includes : Volute Kit (Ref. 2), 1/4-20 x 3/4 Hex Screw (Ref. 11) | $301.40 | 2 in Stock | 1 | ||
| 3 | # 399A-010-98 | Impeller Kit. Includes : Impeller Kit (Ref. 3), Impeller Shim Set (Ref. 4), Impeller Screw (Ref. 18), Impeller Key (Ref. 21) | $370.70 | 2 in Stock | 1 | ||
| 4 | # 1664-000-90 | Impeller Shim Set | $20.90 | 2 in Stock | 1 | ||
| 5+6 | # 1640-167-90 | Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch | $144.10 | 14 in Stock | 1 | ||
| 8 | # 394B-031-95 | Adapter. Includes : Adapter (Ref. 8), 1/2-13 x 1-1/2 Hex Screw (Ref. 13), Lock Washer (Ref. 14), Shaft Sleeve (Ref. 19), 1/8 NPT Pipe Plug (Ref. 22), Wear Plate (Ref. 23), 5/16-18 x % Flat Head Machine Screw (Ref. 24) | $550.00 | 2 in Stock | 1 | ||
| 18 | # 1756-004-00 | Impeller Screw | $9.90 | 2 in Stock | 1 | ||
| 21 | # 1471-030-00 | Impeller Key | $6.60 | 4 in Stock | 1 | ||
| 23 | # 399C-060-95 | Wear Plate. Includes : Wear Plate (Ref. 23), 5/16-18 x % Flat Head Machine Screw (Ref. 24) | $84.70 | 2 in Stock | 1 | ||
| 26 | # 399C-040-95 | Clean Out Cover/Handle Kit. Includes : Clean Out Cover/Handle Kit (Ref. 26), Clean Out Handle (Ref. 28), 3/8 Flat Washer (Ref. 29) | $88.00 | 2 in Stock | 1 | ||
| 37 | # 399C-070-90 | Check Valve Assembly - Neoprene | $56.10 | 2 in Stock | 1 | ||
| 38 | # 399C-050-95 | Suction Flange Kit. Includes : Discharge Flange Kit (Ref. 32), 7/16 Lock Washer (Ref. 33), 7/16-14 x 3 Hex Screw (Ref. 36), Suction Flange Kit (Ref. 38) | $213.40 | 2 in Stock | 1 | ||
| 39 | # 399C-300-90 | Gasket Kit - Buna-N 399C-300-90. Includes : O-Ring - Buna-N (Ref. 7), Volute Gasket - Buna-N (Ref. 16), 10-24 x 3/8 Flat Head Machine Screw (Ref. 20), O-Ring - Buna-N (Ref. 25), Clean Our Gasket - Neoprene (Ref. 27), 1/8 Diameter x 3/8 Long Pin (Ref. 30), O-Ring - Buna-N (Ref. 31), Flange Gasket - Neoprene (Ref. 35) | $62.70 | 20 in Stock | 1 | ||
| 40 | # 1681-000-00 | Suction Strainer (not shown) | $49.50 | 2 in Stock | 1 | ||
