AMT Pump # 394E-95 Parts Order page

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	Part #	Description	Price	Stock	Required

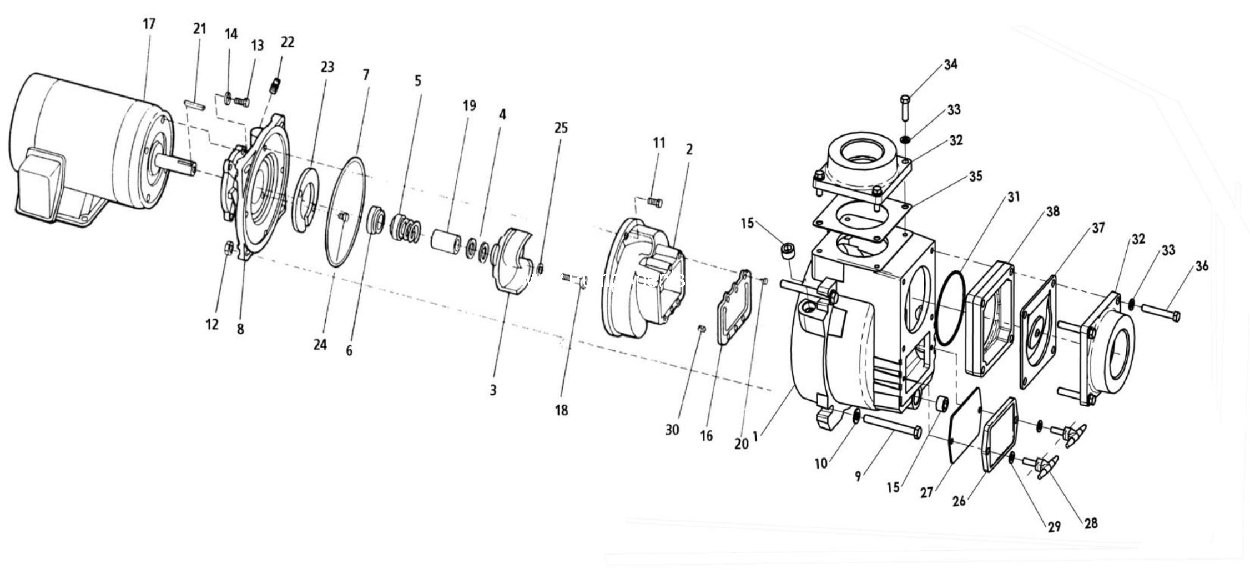

Parts List for AMT Pump model # 394E-95
2	# 399C-150-95	Volute Kit. Includes : Volute Kit (Ref. 2), 1/4-20 x 3/4 Hex Screw (Ref. 11)	$301.40	2 in Stock	1

3	# 394C-010-98	Impeller Kit. Includes : Impeller Kit (Ref. 3), Impeller Shim Set (Ref. 4), Impeller Screw (Ref. 18), Impeller Key (Ref. 21)	$370.70	2 in Stock	1

4	# 1664-000-90	Impeller Shim Set	$20.90	2 in Stock	1

5+6	# 1640-167-90	Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch	$144.10	14 in Stock	1

8	# 394B-031-95	Adapter. Includes : Adapter (Ref. 8), 1/2-13 x 1-1/2 Hex Screw (Ref. 13), Lock Washer (Ref. 14), Shaft Sleeve (Ref. 19), 1/8 NPT Pipe Plug (Ref. 22), Wear Plate (Ref. 23), 5/16-18 x % Flat Head Machine Screw (Ref. 24)	$550.00	2 in Stock	1

18	# 1756-004-00	Impeller Screw	$9.90	2 in Stock	1

21	# 1471-030-00	Impeller Key	$6.60	4 in Stock	1

23	# 399C-060-95	Wear Plate. Includes : Wear Plate (Ref. 23), 5/16-18 x % Flat Head Machine Screw (Ref. 24)	$84.70	2 in Stock	1

26	# 399C-040-95	Clean Out Cover/Handle Kit. Includes : Clean Out Cover/Handle Kit (Ref. 26), Clean Out Handle (Ref. 28), 3/8 Flat Washer (Ref. 29)	$88.00	2 in Stock	1

32	# 394E-080-95	Discharge Flange Kit. Includes : Discharge Flange Kit (Ref. 32), 7/16 Lock Washer (Ref. 33), 7/16-14 x 1-1/2 Hex Screw (Ref. 34)	$129.80	2 in Stock	2

37	# 399C-070-90	Check Valve Assembly - Neoprene	$56.10	2 in Stock	1

38	# 394E-050-95	Suction Flange Kit. Includes : Discharge Flange Kit (Ref. 32), 7/16 Lock Washer (Ref. 33), 7/16-14 x 3 Hex Screw (Ref. 36), Suction Flange Kit (Ref. 38)	$196.90	2 in Stock	1

40	# 1681-000-00	Suction Strainer (not shown)	$49.50	2 in Stock	1
