AMT Pump # 394B-95 Parts Order page( Click Here for the AMT Pump # 394B-95 Product Page ) |
|

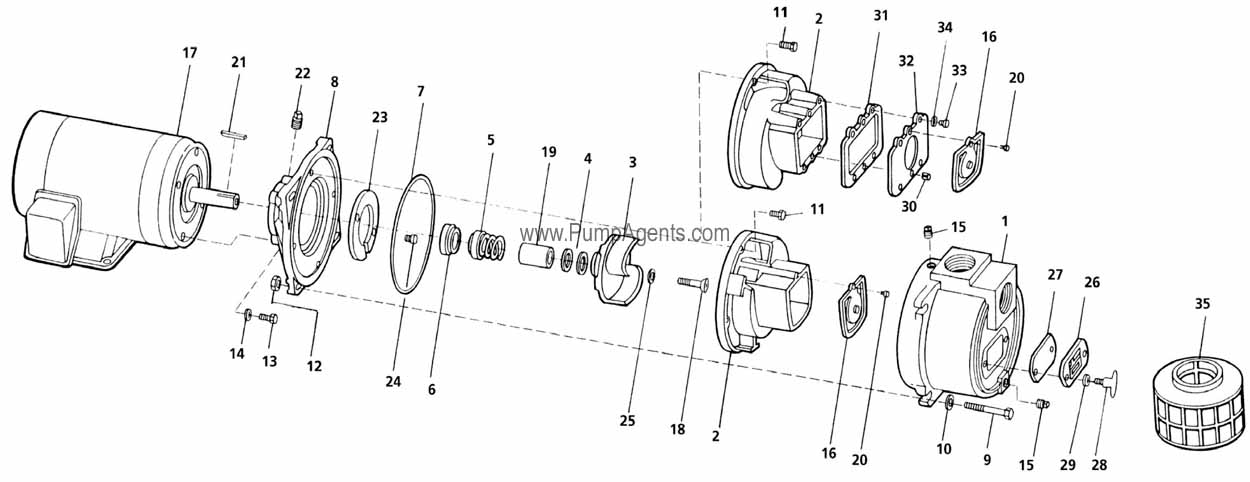

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 394B-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 2184-002-01 | Volute | $330.00 | 2 in Stock | 1 | ||
| 4 | # 1664-000-90 | Impeller Shim Set | $20.90 | 2 in Stock | 1 | ||
| 5+6 | # 1640-167-90 | Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch | $144.10 | 14 in Stock | 1 | ||
| 7 | # 2185-000-00 | O-Ring - Buna-N | $14.30 | 2 in Stock | 1 | ||
| 8 | # 1990-031-01 | Adapter | $471.90 | 2 in Stock | 1 | ||
| 16 | # 3590-070-90 | Flapper Valve Assembly - Neoprene | $41.80 | 2 in Stock | 1 | ||
| 17 | # 1626-079-00 | Motor, 7-1/2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60 Hz Ind, Nema 213JM Frame, replacement electric motor only (pump is not included) | $2080.10 | 1 in Stock | 1 | ||
| 21 | # 1471-030-00 | Impeller Key | $6.60 | 4 in Stock | 1 | ||
| 23 | # 2182-004-01 | Wear Plate | $82.50 | 2 in Stock | 1 | ||
| 25 | # 3150-301-00 | O-Ring - Buna-N | $6.60 | 20 in Stock | 1 | ||
| 26 | # 2115-002-01 | Clean Out Cover | $80.52 | 2 in Stock | 1 | ||
| 27 | # 2115-003-00 | Clean Our Gasket - Neoprene | $16.50 | 1 in Stock | 1 | ||
| 28 | # 1601-000-00 | Clean Out Handle | $17.60 | 2 in Stock | 2 | ||
| 35 | # 1681-000-00 | Suction Strainer | $49.50 | 2 in Stock | 1 | ||
