AMT Pump model 3941-96 Parts

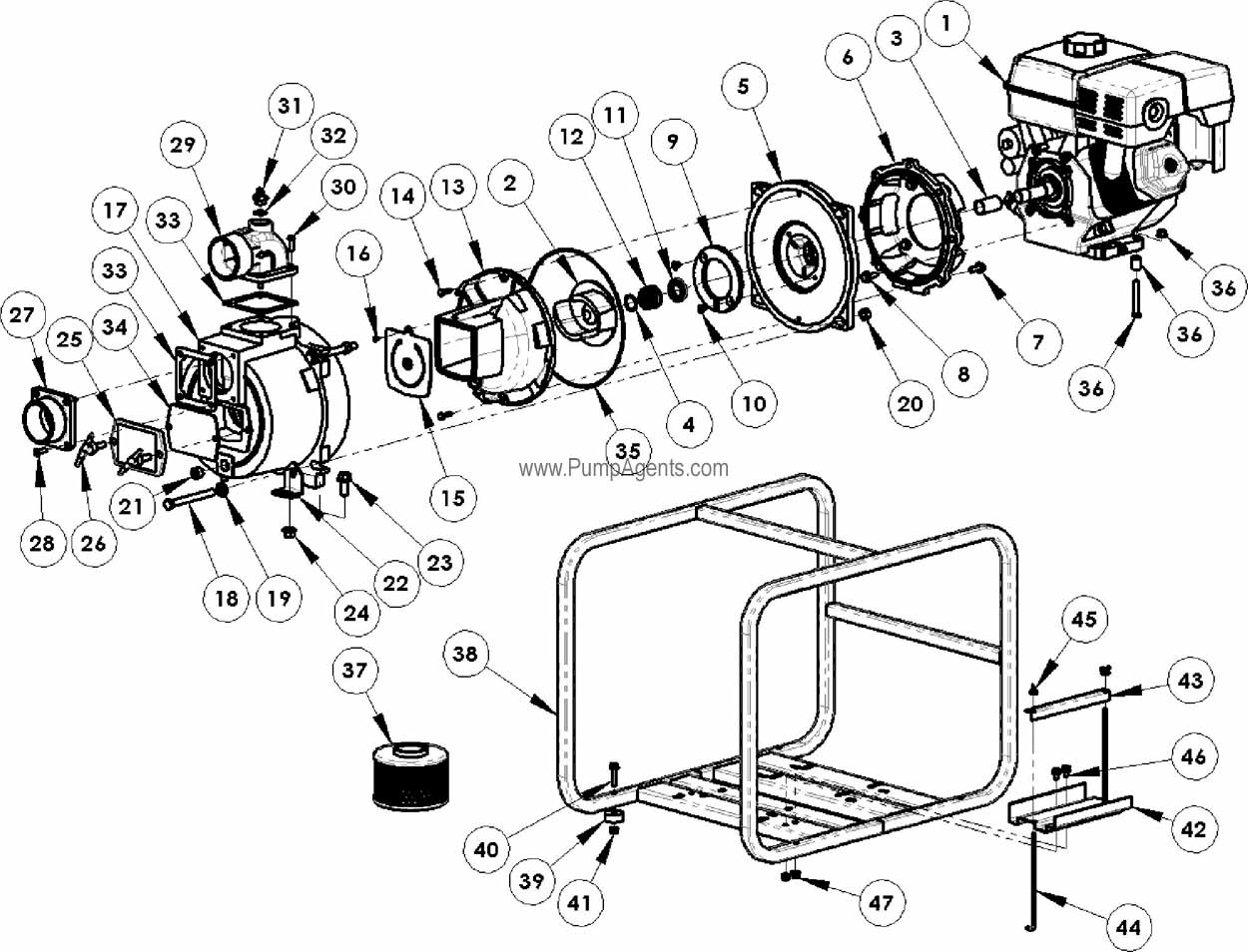

PARTS LIST for AMT Pump model # 3941-96 Pump:
( Click Here for the AMT Pump 3941-96 Product Page )
Item 1
(on image above)
Engine
$ 1257.12 / each
Item 2
(on image above)
Impeller
Impeller Kit. Includes : Impeller Kit (Ref. 2), Shaft Sleeve (Ref. 3), Impeller Shim Kit (Ref. 4)
$ 267.30 / each
Item 5
(on image above)
Casing Cover Kit. Includes : Casing Cover Kit (Ref. 5), Adapter (Ref. 6), Hex Screw (Ref. 7)
$ 660.96 / each
Item 9
(on image above)
Wear Plate Kit. Includes : Hex Screw (Ref. 9), Flat Head Screw (Ref. 10)
$ 121.50 / each
Item 1112
(on image above)
Seal
Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch
$ 176.85 / each
Item 13
(on image above)
Volute Kit. Includes : Volute Kit (Ref. 13), Hex Screw (Ref. 14)
$ 405.00 / each
Item 15
(on image above)
Check Valve Kit-Buna-N (standard). Includes : Check Valve Kit-Buna-N , (Ref. 15), Flat Head Screw (Ref. 16)
$ 61.56 / each
Item 15
(on image above)
Check Valve Kit-Viton (optional). Includes : Check Valve Kit-Buna-N , (Ref. 15), Flat Head Screw (Ref. 16)
$ 132.84 / each
Item 17
(on image above)
Casing
Casing Kit. Includes : Casing Kit (Ref. 17), 1/2-13x5 Hex Bolt (Ref. 18), 1/2 Flat Washer (Ref. 19), 1/2-13 Hex Nut (Ref. 20), 1/2 NPT Plug (Ref. 21)
$ 1125.90 / each
Item 22
(on image above)
Casing Foot Kit. Includes : Casing Foot Kit (Ref. 22), Hex Bolt (Ref. 23), Hex Nut (Ref. 24)
$ 72.90 / each
Item 25
(on image above)
Clean Out Cover Kit. Includes : Clean Out Cover Kit (Ref. 25), Handle Stud (Ref. 26)
$ 129.60 / each
Item 27
(on image above)
Suction Flange Kit. Includes : Suction Flange Kit (Ref. 27), Hex Screw (Ref. 28)
$ 108.54 / each
Item 29
(on image above)
Discharge Manifold Kit. Includes : Discharge Manifold Kit (Ref. 29), Hex Screw (Ref. 30)
$ 174.96 / each
Item 31
(on image above)
Fill Plug Kit-Buna-N oring (standard)
$ 12.96 / each
Item 31
(on image above)
Fill Plug Kit-Viton oring (optional). Includes : Fill Plug Kit-Buna-N oring (Ref. 31), 117 O-ring (Ref. 32)
$ 17.82 / each
