AMT Pump # 3700-95 Parts Order page |
|

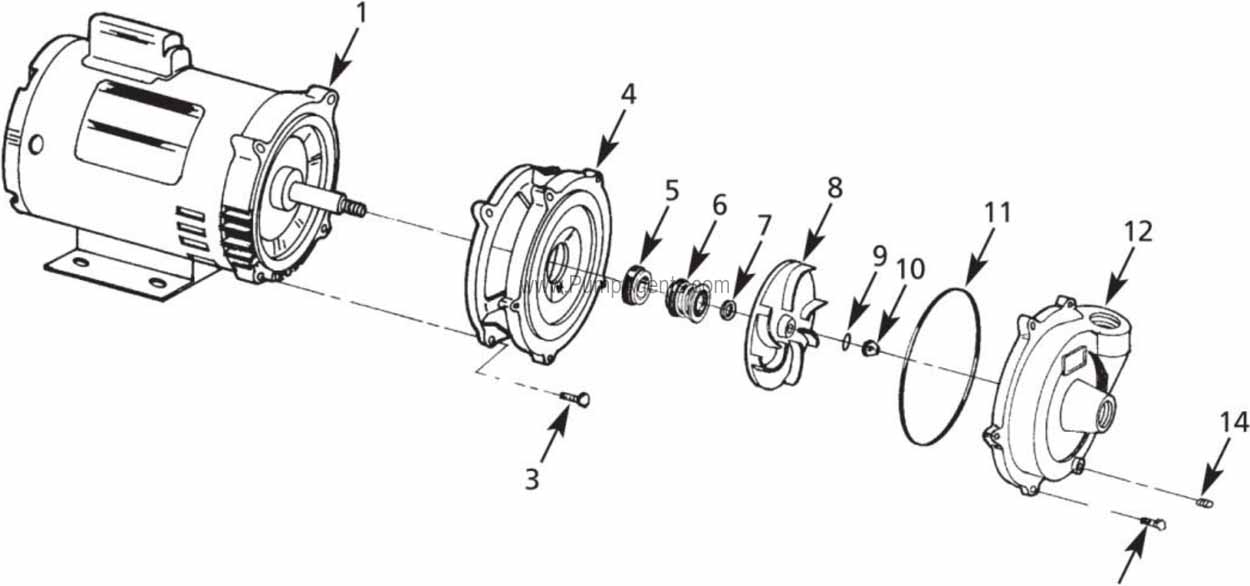

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 3700-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1626-010-00 | Motor, 3/4 Horsepower, 115/230 Volts, 1 Phase, ODP Open Drip Proof, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included) | $415.80 | 1 in Stock | 1 | ||
| 4 | # 3690-035-00 | Adapter -Cast Iron | $55.00 | 2 in Stock | 1 | ||
| 5+6 | # 1640-161-90 | Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch | $19.80 | 14 in Stock | 1 | ||
| 7 | # 1806-044-90 | Impeller Shim Set | $6.60 | 4 in Stock | 1 | ||
| 10 | # 1784-001-00 | Impeller Fastener | $12.10 | 2 in Stock | 1 | ||
| 12 | # 3700-002-09 | Casing -Cast Iron | $90.20 | 2 in Stock | 1 | ||
| KIT | # 3690-300-90 | O-Ring Seal Kit -Buna N. Includes : Impeller Seal -Buna N (Ref. 9), Casing Seal -Buna N (Ref. 11) | $23.10 | 20 in Stock | 1 | ||
