AMT Pump model 3655-95 Parts

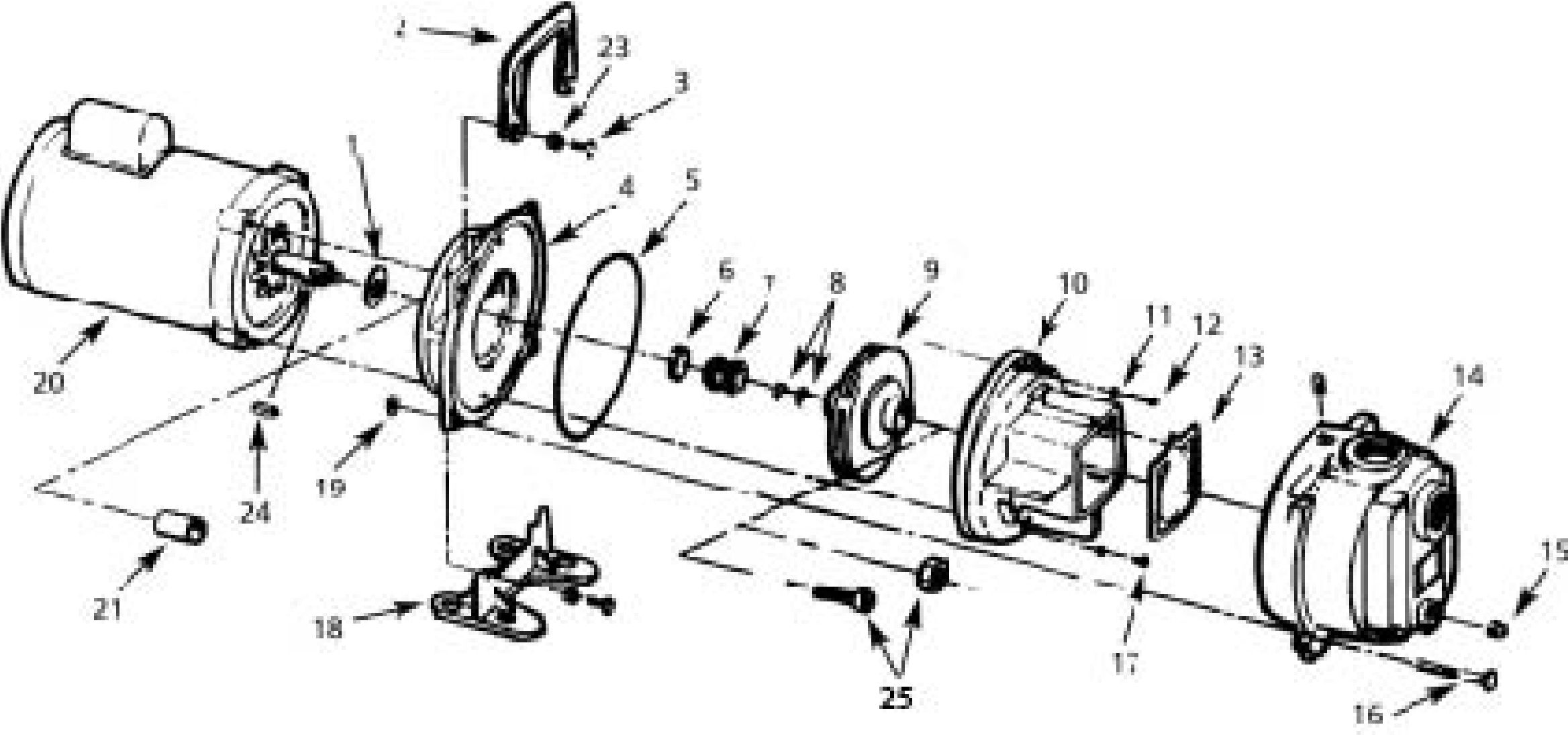

PARTS LIST for AMT Pump model # 3655-95 Pump:
( Click Here for the AMT Pump 3655-95 Product Page )
Item 1
(on image above)
Slinger Washer
$ 8.10 / each
Item 5
(on image above)
Casing Seal - Buna N (standard)
$ 17.82 / each
Item 5
(on image above)
Casing Seal - Viton (optional)
$ 27.54 / each
Item 67
(on image above)
Seal
Mechanical Seal, Buna-N/Carbon/Ceramic, Type 21, size 1-1/8 Inch
$ 44.55 / each
Item 67
(on image above)
Mechanical Seal, Viton/Carbon/Ceramic, Type 21, size 1-1/8 Inch
$ 93.96 / each
Item 8
(on image above)
Impeller Shims
$ 16.20 / each
Item 10
(on image above)
Volute. Includes : Volute (Ref. 10), Washer (Ref. 11), Fastener (Ref. 12), Fastener (Ref. 17)
$ 359.64 / each
Item 13
(on image above)
Flapper Valve - Buna N (standard)
$ 33.75 / each
Item 14
(on image above)
Casing
Casing
$ 518.40 / each
Item 20
(on image above)
Motor
Motor, 5 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 184JM Frame, replacement electric motor only (pump is not included)
$ 1260.36 / each
Item 21
(on image above)
Shaft Sleeve
$ 45.90 / each
Item 22
(on image above)
Impeller Seal
$ 8.10 / each
Item 23
(on image above)
Impeller Fastener
$ 11.34 / each
Item 24
(on image above)
Impeller Key
$ 9.72 / each
