AMT Pump model 3201-96 Parts
PARTS LIST for AMT Pump model # 3201-96 Pump:

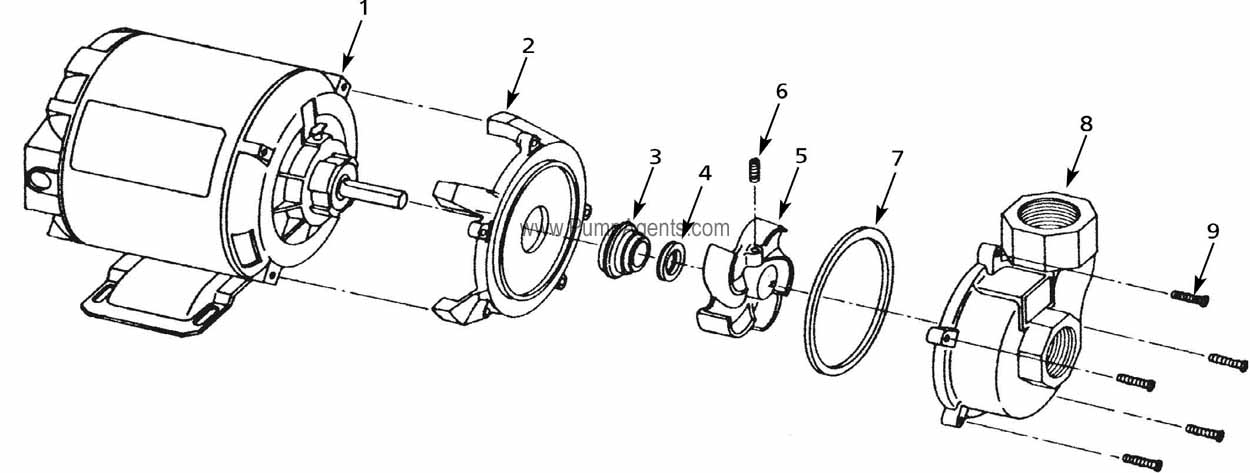

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the AMT Pump 3201-96 Product Page )
Item 1
(on image above)
Motor
Motor, 1/4 Horsepower, 115 Volts, ODP Open Drip Proof, 60 Hz, Nema 56C Frame, replacement electric motor only (pump is not included)
$ 255.96 / each
Item 2
(on image above)
Adapter
$ 56.70 / each
Item 34
(on image above)
Seal
Mechanical Seal, Buna-N, Type 11A, size 5/8 Inch
$ 17.82 / each
Item 5
(on image above)
Impeller
Impeller Kit. Includes : Impeller Kit (Ref. 5), Fastener (Ref. 6)
$ 38.88 / each
Item 7
(on image above)
O-Ring Kit - Buna N
$ 17.82 / each
Item 8
(on image above)
Casing
Casing Kit. Includes : Casing Kit (Ref. 8), Fastener (Ref. 9)
$ 63.18 / each
