AMT Pump model 3160-99 Parts

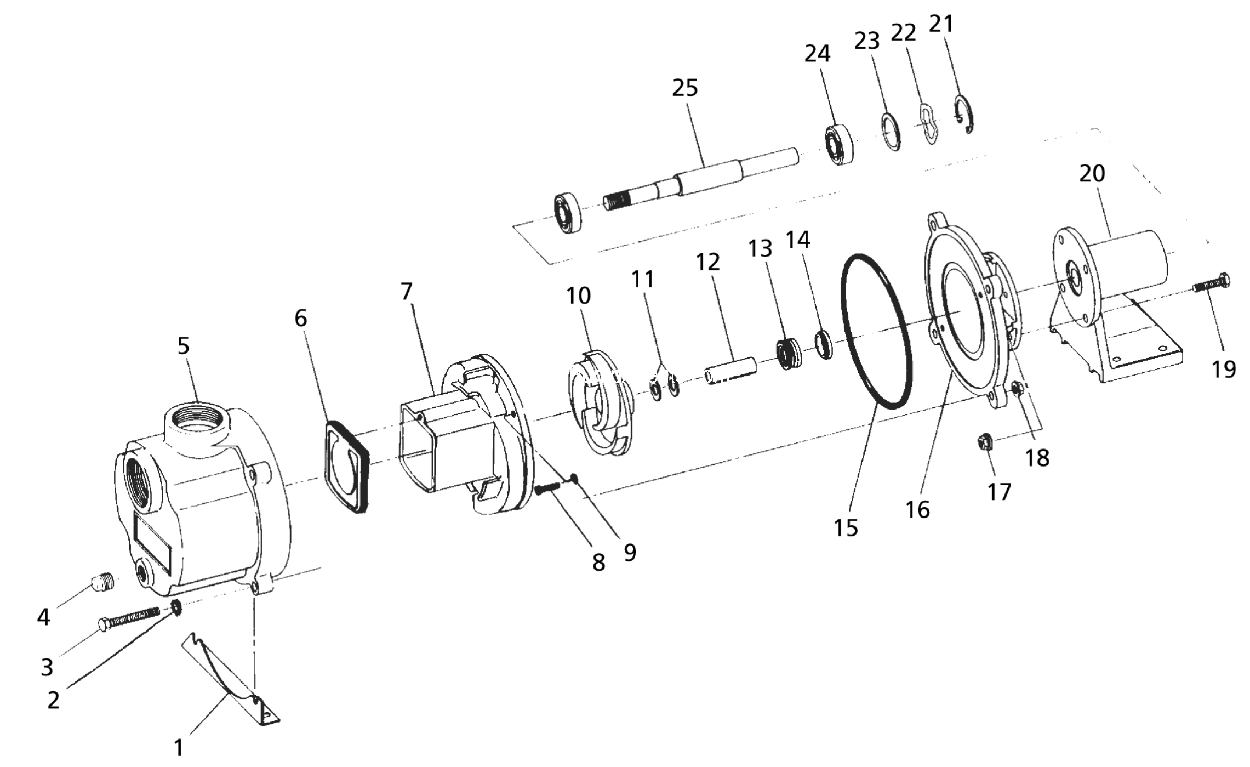

PARTS LIST for AMT Pump model # 3160-99 Pump:
( Click Here for the AMT Pump 3160-99 Product Page )
Item 5
(on image above)
Casing
Casing
$ 362.88 / each
Item 7
(on image above)
Volute
$ 157.14 / each
Item 10
(on image above)
Impeller
Impeller
$ 79.38 / each
Item 11
(on image above)
Impeller Shim Package
$ 9.72 / each
Item 1314
(on image above)
Seal
Mechanical Seal, Buna-N/Carbon/Ceramic, Type 6, size 3/4 Inch
$ 24.30 / each
Item 20
(on image above)
Pedestal
$ 193.05 / each
Item 21
(on image above)
Retaining Ring
$ 9.72 / each
Item 22
(on image above)
Wave Washer
$ 9.72 / each
Item 23
(on image above)
Bearing Shim Package
$ 9.72 / each
Item 24
(on image above)
Ball Bearing
$ 34.02 / each
Item 25
(on image above)
Pump Shaft
$ 64.80 / each
Item KIT
(on image above)
O-Ring/Flapper Kit - Buna N. Includes : Flapper Valve - Buna N (Ref. 6), Casing O-Ring - Buna N (Ref. 15)
$ 50.22 / each
