AMT Pump model 3156-98 Parts( Click Here for the AMT Pump 3156-98 Product Page ) |
|

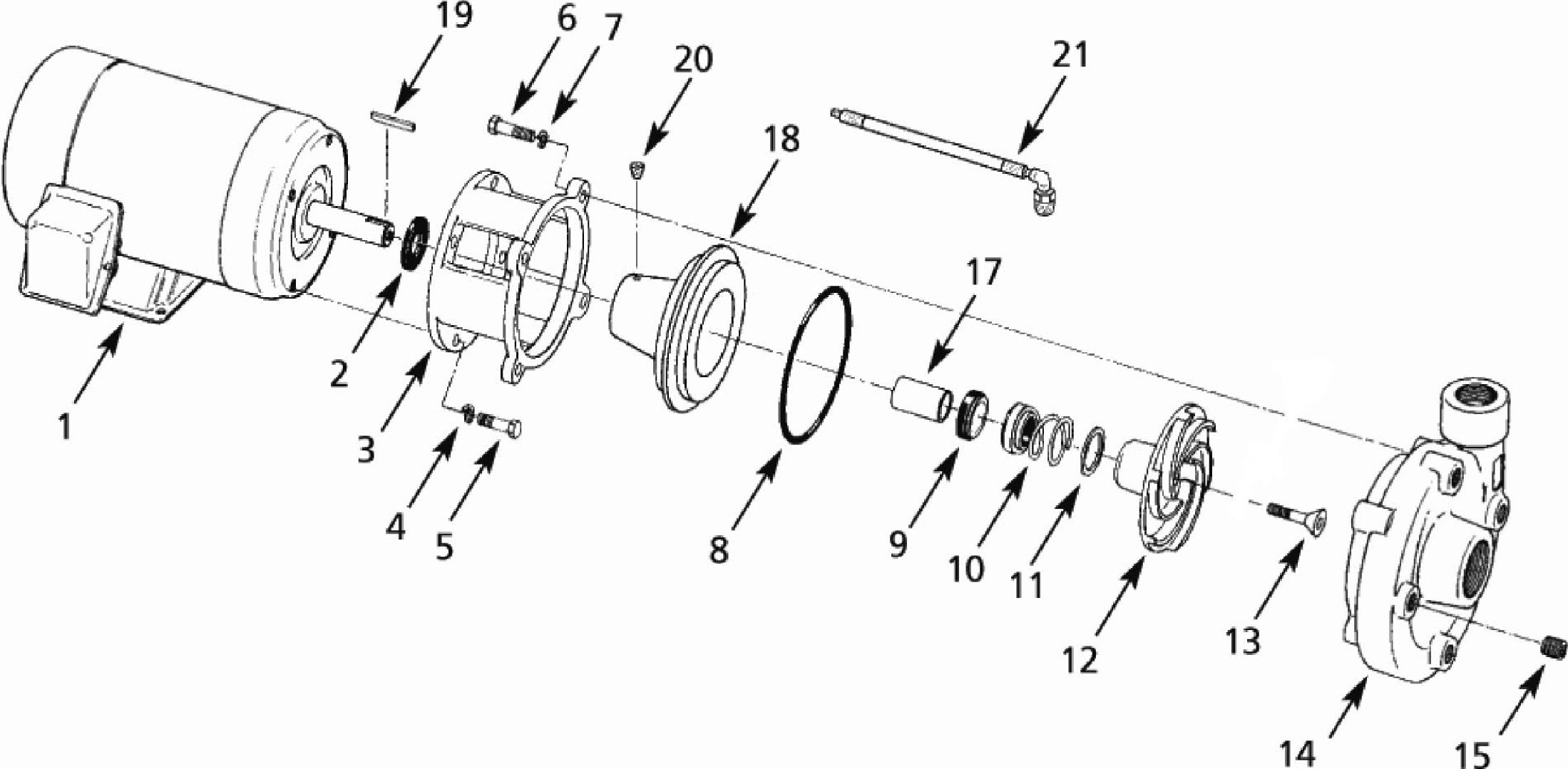

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 3156-98 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1626-305-00 | Motor, 2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included) | $708.40 | 1 in Stock | 1 | ||
| 3 | # 4890-031-98 | Adapter - Stainless Steel | $300.30 | 2 in Stock | 1 | ||
| 11 | # 1806-044-90 | Impeller Shim Kit | $6.60 | 2 in Stock | 1 | ||
| 12 | # 3156-011-00 | Impeller | $224.40 | 2 in Stock | 1 | ||
| 13 | # 1784-001-00 | Impeller Fastener | $12.10 | 2 in Stock | 1 | ||
| 14 | # 3156-001-98 | Casing - Stainless Steel, includes Casing, Fasteners, and Pipe Plug. | $729.30 | 2 in Stock | 1 | ||
| 21 | # 4261-170-00 | Hose (optional for pumps w/ seal wash) | $216.70 | 5 in Stock | 1 | ||
| KIT | # 3156-300-91 | Seal Kit - Viton (standard with Stainless Steel Pumps), includes Shaft Seal, and O-Ring. | $50.60 | 5 in Stock | 1 | ||
