AMT Pump # 3156-94 Parts Order page( Click Here for the AMT Pump # 3156-94 Product Page ) |
|

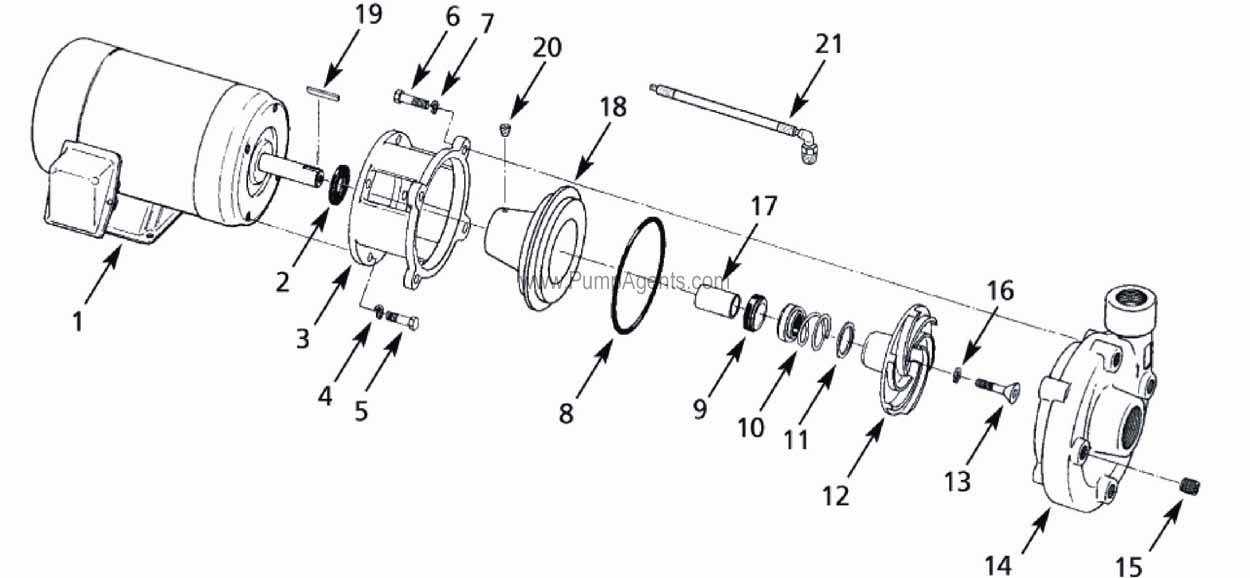

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 3156-94 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1626-305-00 | Motor, 2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included) | $708.40 | 1 in Stock | 1 | ||
| 3 | # 4890-030-97 | Adapter - Bronze | $390.50 | 2 in Stock | 1 | ||
| 11 | # 1806-044-90 | Impeller Shim Kit | $6.60 | 6 in Stock | 1 | ||
| 13 | # 1784-001-00 | Impeller Fastener | $12.10 | 2 in Stock | 1 | ||
| 14 | # 3156-001-94 | Casing - Bronze. Includes : Fastener (Ref. 6), Washer (Ref. 7), Casing - Cast Iron (Ref. 14), Pipe Plug (Ref. 15) | $1085.70 | 2 in Stock | 1 | ||
| 21 | # 4261-170-00 | Hose (optional for pumps w/ seal wash) | $216.70 | 5 in Stock | 1 | ||
| KIT | # 3156-300-91 | Seal Kit - Viton (standard Bronze & SS). Includes : O-Ring (Ref. 8), O-Ring (Ref. 16) | $50.60 | 5 in Stock | 1 | ||
| KIT | # 3156-300-92 | Seal Kit - Viton & Sil. Carb. (optional) | $84.70 | 5 in Stock | 1 | ||
