AMT Pump model 3151-94 Parts( Click Here for the AMT Pump 3151-94 Product Page ) |
|

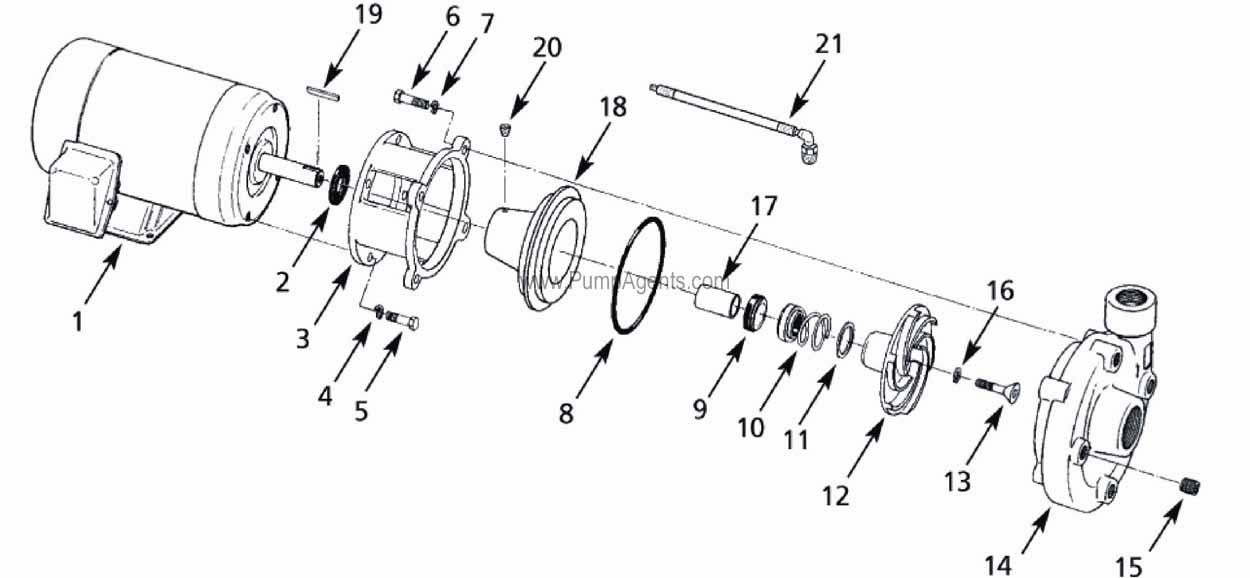

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 3151-94 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1627-351-00 | Motor, 3 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 182JM Frame, replacement electric motor only (pump is not included) | $1087.90 | 1 in Stock | 1 | ||
| 2 | # 1470-093-00 | Slinger Washer | $6.60 | 4 in Stock | 1 | ||
| 3 | # 3150-033-09 | Adapter - Bronze | $188.76 | 2 in Stock | 1 | ||
| 11 | # 1664-000-90 | Impeller Shim Kit | $20.90 | 2 in Stock | 1 | ||
| 13 | # 1759-003-00 | Impeller Fastener | $6.60 | 2 in Stock | 1 | ||
| 14 | # 3150-004-94 | Casing - Bronze. Includes : Fastener (Ref. 6), Washer (Ref. 7), Casing - Cast Iron (Ref. 14), Pipe Plug (Ref. 15) | $1085.70 | 2 in Stock | 1 | ||
| 17 | # 1555-142-00 | Shaft Sleeve | $37.40 | 12 in Stock | 1 | ||
| 18 | # 3150-023-09 | Casing Cover- Bronze | $392.70 | 5 in Stock | 1 | ||
| 19 | # 1471-030-00 | Impeller Key | $6.60 | 4 in Stock | 1 | ||
| 21 | # 4261-170-00 | Hose (optional for pumps w/ seal wash) | $216.70 | 5 in Stock | 1 | ||
| KIT | # 3150-300-91 | Seal Kit - Viton (standard Bronze & SS). Includes : O-Ring (Ref. 8), O-Ring (Ref. 16) | $101.20 | 5 in Stock | 1 | ||
| KIT | # 3150-300-92 | Seal Kit - Viton & Sil. Carb. (optional) | $132.00 | 1 in Stock | 1 | ||
| KIT | # 3150-300-96 | Seal Kit - EPR-EPDM (optional) | $101.20 | 5 in Stock | 1 | ||
