AMT Pump # 3100-99 Parts Order page( Click Here for the AMT Pump # 3100-99 Product Page ) |
|

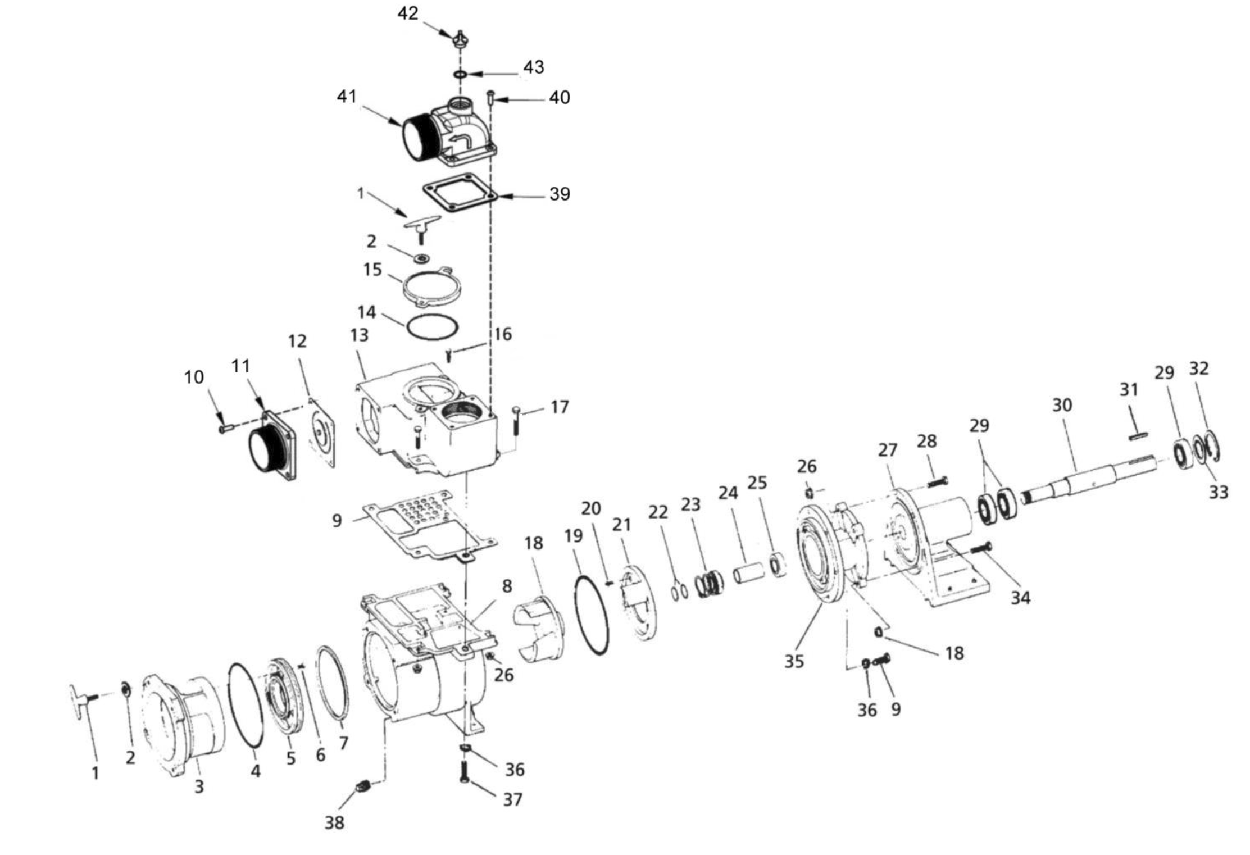

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 3100-99 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1601-000-00 | Threaded Handle (cover plate) | $17.60 | 2 in Stock | 6 | ||
| 3 | # 1596-000-01 | Suction Cleanout (cover plate) | $256.08 | 2 in Stock | 1 | ||
| 5 | # 1597-000-01 | Front Wear Plate | $111.10 | 2 in Stock | 1 | ||
| 6 | # 1742-000-00 | 5/16-18 x 3/4 Stainless Steel Socket Head Cap Screw | $6.60 | 2 in Stock | 3 | ||
| 8 | # 1587-000-01 | Casing | $546.70 | 2 in Stock | 1 | ||
| 11 | # 3S5X-050-95 | Suction Plate Kit. Includes : Button Head Screw (Ref. 10), Suction Plate Kit (Ref. 11) | $73.70 | 2 in Stock | 1 | ||
| 13 | # 3100-080-96 | Manifold Kit. Includes : Threaded Handle (Ref. 1), 3/8 Flat Washer (Ref. 2), Manifold Kit (Ref. 13), O-Ring #243 Buna N (Ref. 14), Manifold Cleanout Cover Plate (Ref. 15), 3/8-16 x 1-1/4 Hex Head Cap Screw (Ref. 16), 3/8-16 x 2-1/4Hex Head Cap Screw (Ref. 17), 3/8-16 Lock Nut (Ref. 26), 3/8 Lock Nut (Ref. 36), 3/8-16 x 1-1/2 Hex Head Cap Screw (Ref. 37) | $535.70 | 2 in Stock | 1 | ||
| 15 | # 1602-001-01 | Manifold Cleanout Cover Plate | $22.00 | 2 in Stock | 1 | ||
| 18 | # 1594-000-01 | Impeller | $128.70 | 2 in Stock | 1 | ||
| 20 | # 1741-000-00 | 5/16-18 x 1/2 Stainless Steel Flat Socket Head Screw | $6.60 | 2 in Stock | 4 | ||
| 21 | # 1595-000-01 | Cutwater/Wear Plate | $129.80 | 2 in Stock | 1 | ||
| 22 | # 1656-000-90 | Impeller Shim Kit | $12.10 | 2 in Stock | 1 | ||
| 23+25 | # 1640-167-90 | Shaft Sleeve Assembly - Viton & Silicon Carbide | $144.10 | 14 in Stock | 1 | ||
| 27 | # 1695-054-01 | Bearing Housing | $418.00 | 2 in Stock | 1 | ||
| 29 | # 1695-056-00 | Ball Bearing | $59.40 | 2 in Stock | 3 | ||
| 30 | # 1695-060-00 | Pump Shaft Assembly | $253.00 | 2 in Stock | 1 | ||
| 31 | # 1695-039-00 | Shaft Key | $6.60 | 4 in Stock | 1 | ||
| 32 | # 1695-057-00 | Snap Ring | $12.10 | 2 in Stock | 1 | ||
| 33 | # 1695-020-90 | Bearing Shim Kit | $12.10 | 2 in Stock | 1 | ||
| 35 | # 1588-000-01 | Adapter | $217.80 | 2 in Stock | 1 | ||
| 41 | # 3S5X-080-95 | Discharge Manifold Kit. Includes : Button Head Screw (Ref. 40), Discharge Manifold Kit (Ref. 41) | $121.00 | 2 in Stock | 1 | ||
| 42 | # 3SXB-170-90 | Plug with O-Ring Kit. Includes : O-Ring #117 Buna N (Ref. 43) | $8.80 | 20 in Stock | 1 | ||
| KIT | # 3100-301-92 | Gasket Kit (Male Flange Type). Includes : O-Ring #261 Buna N (Ref. 4), O-Ring #437 Buna N (Ref. 7), Manifold Gasket (Ref. 9), Flapper Valve Assembly w/ Weight (Ref. 12), O-Ring #243 Buna N (Ref. 14), O-Ring #260 Buna N (Ref. 19), Discharge Manifold Gasket EPDM (Ref. 39), Plug with O-Ring Kit (Ref. 42), O-Ring #117 Buna N (Ref. 43) | $74.80 | 20 in Stock | 1 | ||
