Parts for AMT Pump model # 2SP20C-1P

Item 1

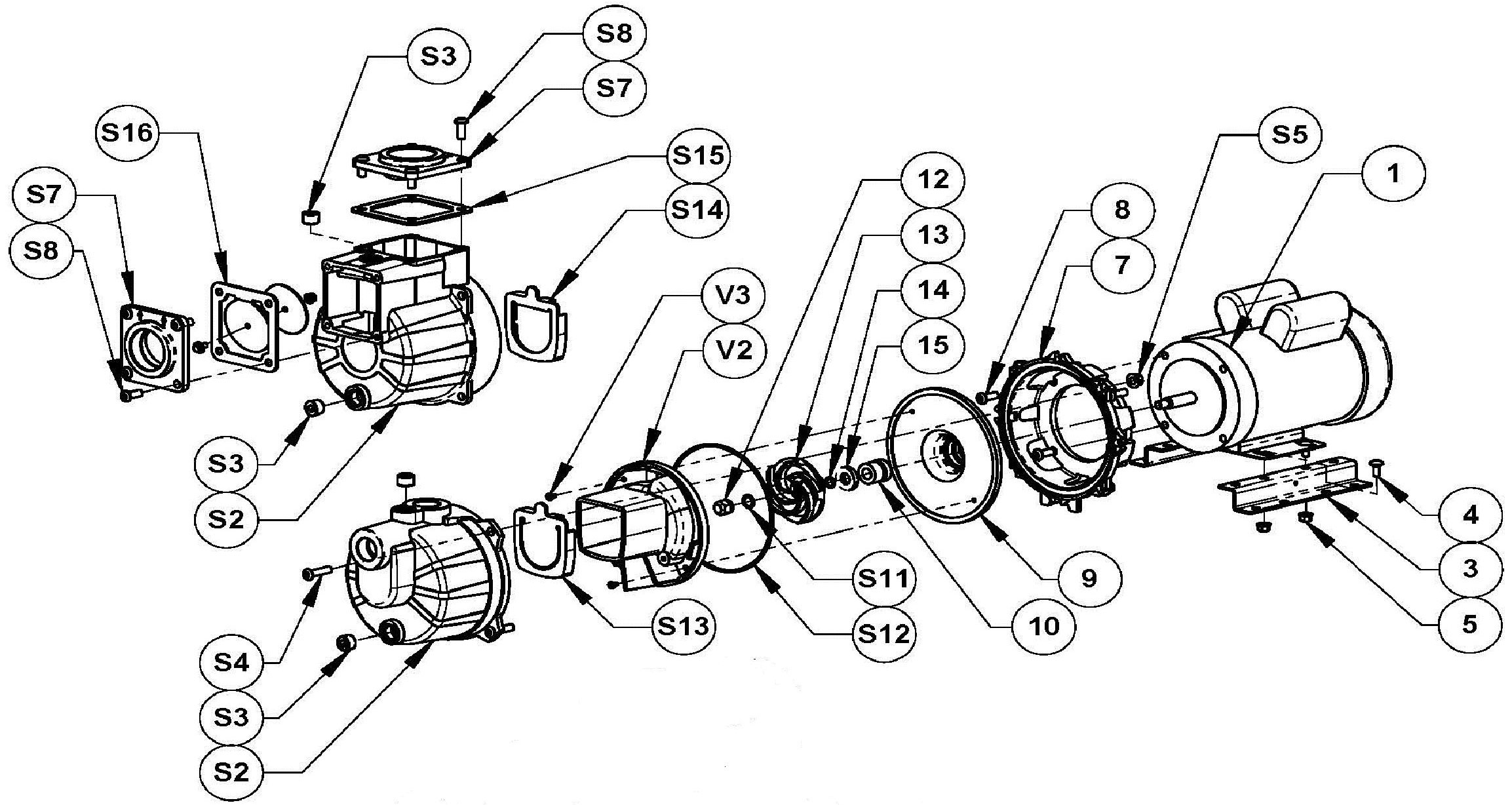

(on image above)

Motor

Motor, 2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)

$ 678.78 / each

Item 7
(on image above)

Part # 1A11-030-95

Adapter Kit. Includes : Adapter Kit (Ref. 7), Fasteners (Ref. 8)

$ 89.10 / each

Item 9
(on image above)

Part # 1A11-020-95

Mechanical Seal, Type 6, size 5/8 Inch

$ 81.00 / each

Item 10
(on image above)

Part # 1641-161-91

Seal

EPDM/EPR Seal Assembly

$ 59.94 / each

Item 13
(on image above)

Part # 1A39-010-95

Impeller

Impeller Kit. Includes : Impeller Lock Nut (Ref. 12), Impeller Kit (Ref. 13), Impeller Shim (Ref. 14)

$ 113.40 / each

Item 15
(on image above)

Part # 1A11-019-00

Seal Spacer

$ 22.68 / each

Item S2
(on image above)

Part # 1A31-001-95

Casing

Casing Kit. Includes : Casing Kit (Ref. S2), Pipe Plug (Ref. S3), Fasteners (Ref. S4), Fasteners (Ref. S5)

$ 324.00 / each

Item S7
(on image above)

Part # 1A41-050-95

Flange FNPT Kit. Includes : Flange FNPT Kit , Fasteners (Ref. S7)

$ 74.52 / each

Item S14
(on image above)

Part # 1A31-306-90

O-ring & Gasket EPDM Kit. Includes : O-ring EPDM #113 (Ref. S11), O-ring EPDM #263 (Ref. S12), Flapper & O-ring EPDM Kit (Ref. S13)

$ 29.16 / each

Item S15
(on image above)

Part # 1A31-305-90

Discharge Flange Gasket EPDM Kit

$ 24.30 / each

AMT Pump model 2SP20C-1P Parts
