AMT Pump model 2875-95 Parts

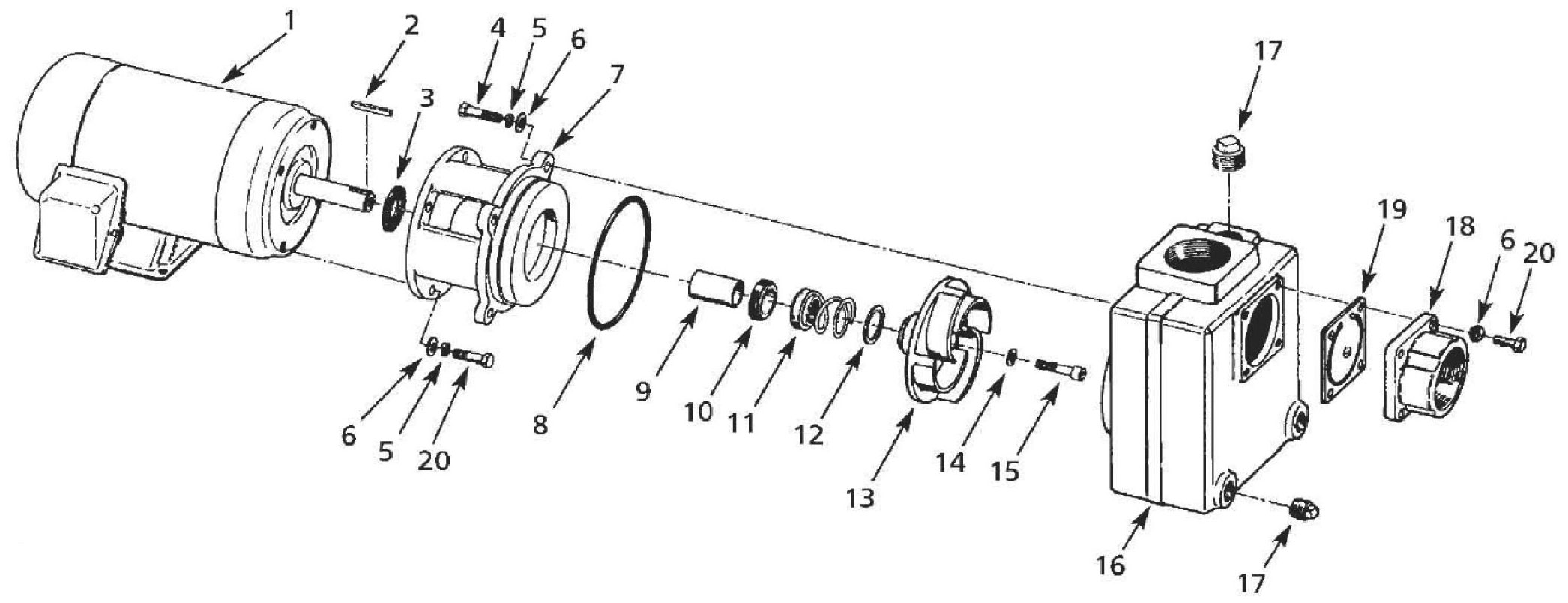

PARTS LIST for AMT Pump model # 2875-95 Pump:
( Click Here for the AMT Pump 2875-95 Product Page )
Item 1
(on image above)
Motor
Motor, 5 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 184JM Frame, replacement electric motor only (pump is not included)
$ 1260.36 / each
Item 2
(on image above)
Impeller Key
$ 9.72 / each
Item 3
(on image above)
Slinger Washer
$ 8.10 / each
Item 7
(on image above)
Adapter Assembly
$ 281.88 / each
Item 8
(on image above)
O-Ring & Flapper Valve Kit - Buna. Includes : O-Ring & Flapper Valve Kit - Buna (Ref. 8), Impeller Seal Washer (Ref. 14), Flapper Valve Assembly (Ref. 19)
$ 66.42 / each
Item 8
(on image above)
O-Ring & Flapper Valve Kit - Viton
$ 149.04 / each
Item 9
(on image above)
Shaft Sleeve
$ 45.90 / each
Item 1011
(on image above)
Seal
Mechanical Seal, Buna-N/Carbon/Ceramic, Type 21, size 1-1/8 Inch
$ 44.55 / each
Item 1011
(on image above)
Mechanical Seal, Viton/Carbon/Ceramic, Type 21, size 1-1/8 Inch
$ 93.96 / each
Item 12
(on image above)
Impeller Shim Set
$ 16.20 / each
Item 13
(on image above)
Impeller
Impeller Kit. Includes : Impeller Kit (Ref. 13), Impeller Seal Washer (Ref. 14), Impeller Screw (Ref. 15)
$ 340.20 / each
Item 16
(on image above)
Casing
Casing
$ 616.95 / each
Item 18
(on image above)
Suction Plate
$ 116.64 / each
