AMT Pump model 2761-95 Parts

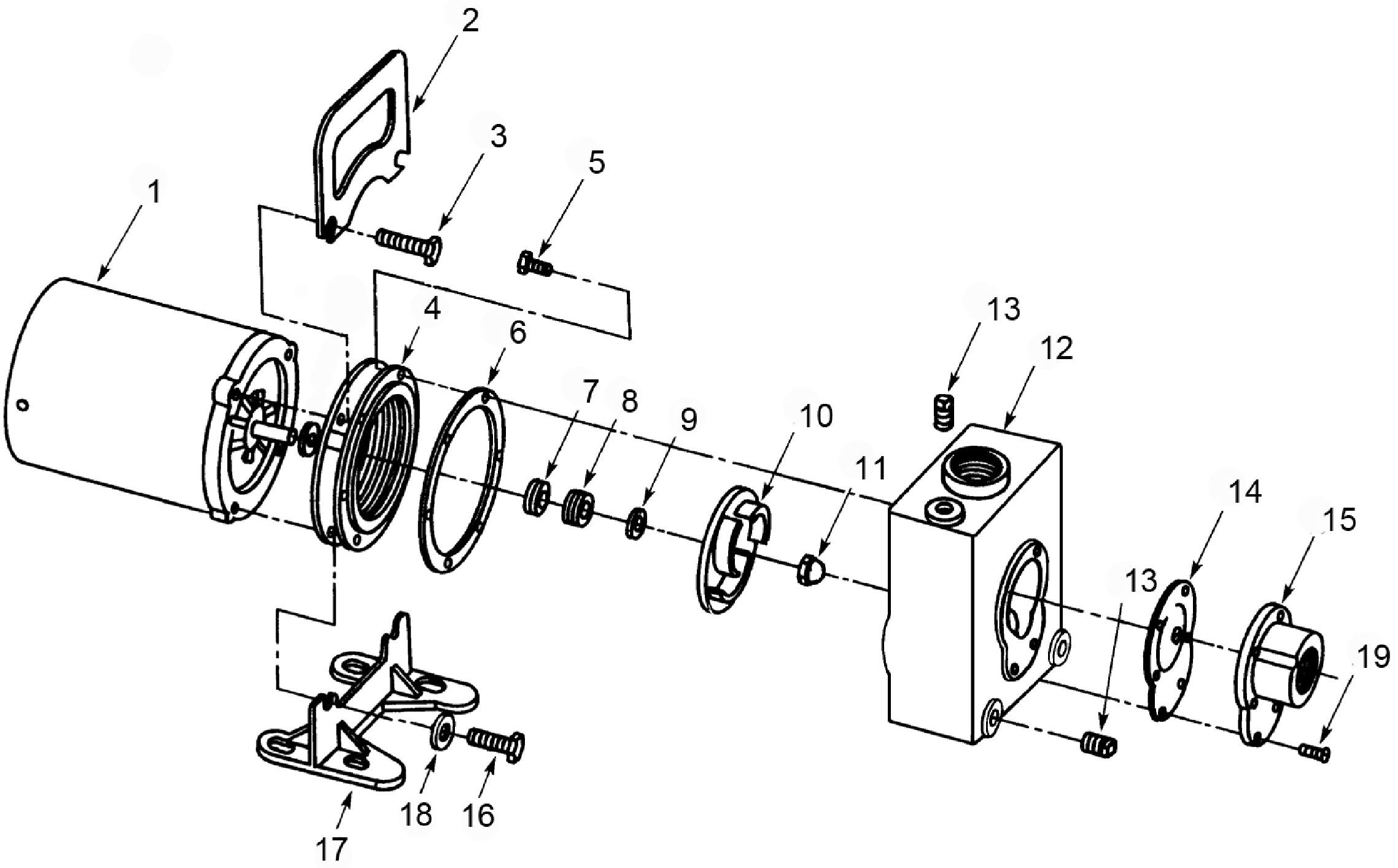

PARTS LIST for AMT Pump model # 2761-95 Pump:
( Click Here for the AMT Pump 2761-95 Product Page )
Item 1
(on image above)
Motor
Motor, 2 Horsepower, 115/230 Volts, 1 Phase, ODP Open Drip Proof, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
$ 644.76 / each
Item 2
(on image above)
Handle
$ 17.82 / each
Item 4
(on image above)
Adapter Kit. Includes : Fastener (Ref. 3), Adapter Kit (Ref. 4), Fastener (Ref. 5)
$ 223.56 / each
Item 78
(on image above)
Seal
Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 24.30 / each
Item 9
(on image above)
Impeller Shim Set
$ 14.85 / each
Item 10
(on image above)
Impeller
Impeller - 1 Phase
$ 81.00 / each
Item 11
(on image above)
Impeller Fastener
$ 14.85 / each
Item 12
(on image above)
Casing
Casing Kit - Buna-N. Includes : Fastener (Ref. 5), Pipe Plug (Ref. 13), Flapper Valve Assembly - Buna-N (Ref. 14), Suction Plate (Ref. 15)
$ 422.82 / each
Item 17
(on image above)
Foot
$ 22.95 / each
Item KIT
(on image above)
Seal Kit
Seal Kit - Buna-N (standard). Includes : Casing Seal (Ref. 6), Flapper Valve Assembly - Buna-N (Ref. 14)
$ 69.66 / each
