AMT Pump model 07ES05C-3P Parts

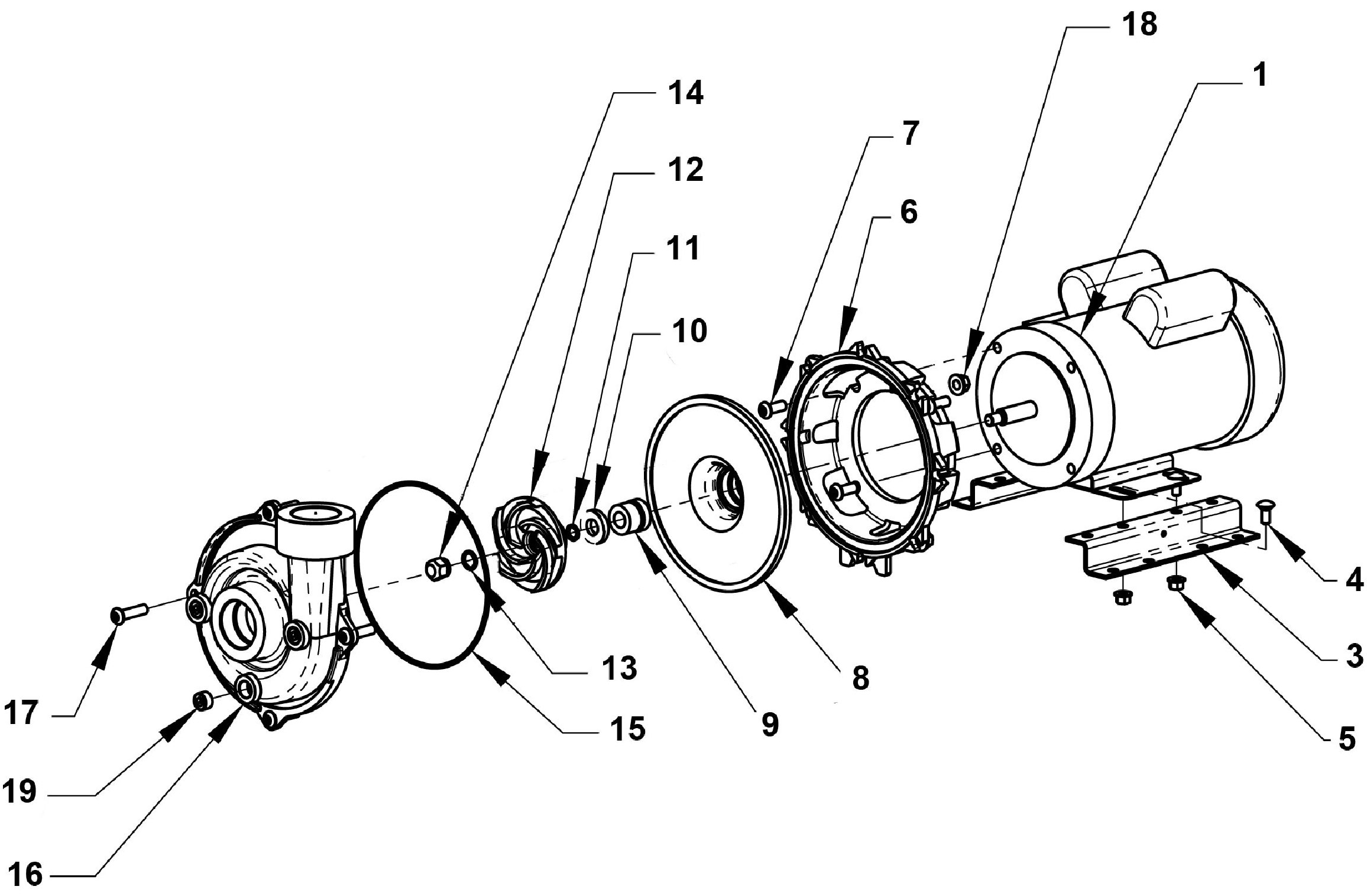

PARTS LIST for AMT Pump model # 07ES05C-3P Pump:
( Click Here for the AMT Pump 07ES05C-3P Product Page )
Item 1
(on image above)
Motor
Motor, 1/2 Horsepower, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 479.52 / each
Item 6
(on image above)
Adapter Kit. Includes : Adapter Kit, (Ref. 6), Fasteners (Ref. 7)
$ 89.10 / each
Item 8
(on image above)
Mechanical Seal, Type 6, size 5/8 Inch
$ 81.00 / each
Item 9
(on image above)
Seal
EPDM/EPR Seal Assembly
$ 59.94 / each
Item 10
(on image above)
Seal Spacer
$ 22.68 / each
Item 12
(on image above)
Impeller
Impeller Kit. Includes : Impeller Shim (Ref. 11), Impeller Kit (Ref. 12), Impeller Lock Nut (Ref. 14)
$ 72.90 / each
Item 16
(on image above)
Casing
Casing Kit. Includes : Casing Kit (Ref. 16), Pipe Plug (Ref. 17), Fasteners (Ref. 18), Fasteners (Ref. 19)
$ 210.60 / each
Item KIT
(on image above)
O-ring EPDM Kit. Includes : O-ring EPDM #113 (Ref. 13), O-ring EPDM #263 (Ref. 15)
$ 19.44 / each
