Weinman # 6AFV-75P24 - Centrifugal Pump 7-1/2 HP, 1750 RPM, TEFC, Buna

Weinman Pump 6AFV-75P24

Weinman # 6AFV-75P24

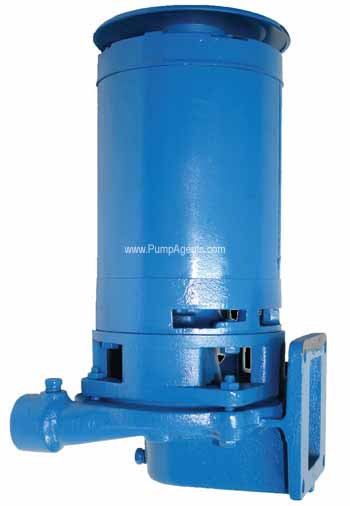

Weinman catalog # 6AFV-75P24, Centrifugal Pump and Motor unit. Cast Iron body, and Bronze enclosed impeller. Seal: Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts. Pump is Close Coupled to a 7-1/2 Horsepower, 1750 RPM, 230/460, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Comes with Bare shafted Pump End Only - No Motor, no coupling, no Baseplate. 1.5 Inch NPT Discharge Port, Inlet is Square Flanged Suction for Mounting to Condensate Tanks.
