Weinman4KL-200P24-Y34CentrifugalPump 20 HP TEFC 1750RPM Buna

Weinman 4KL-200P24-Y34 Centrifugal Pump 20 HP, 1750RPM, TEFC, Buna

Weinman Pump 4KL-200P24-Y34

Weinman # 4KL-200P24-Y34

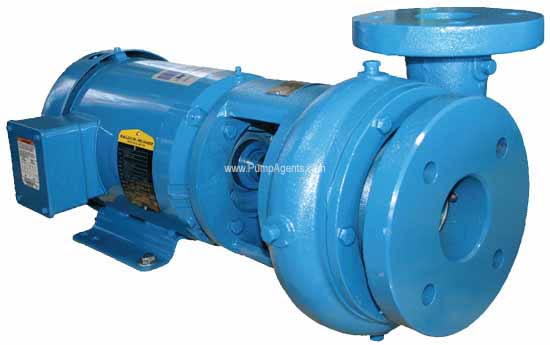

Weinman catalog # 4KL-200P24-Y34, Centrifugal Pump and Motor unit. Cast Iron body, with Bronze wear ring, and Bronze enclosed impeller. Seal: Type 21 Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts. Pump is Close Coupled to a 20 Horsepower, 1750 RPM, 208-230/460, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. 4 Inch 150 lb Flanged Discharge Port, 5 Inch 150 lb Flanged Inlet Port.

Price : $ 16437.46

Qty :

Same Day (2 in stock)



Product Information :

Weinman's versatile end-suction pumps are heavy duty, general purpose centrifugal pumps with heavy wall castings suitable for many commercial, industrial and municipal needs. Applications include condenser, chilled, and hot water systems in HVAC, process secondary pumping, and municipal drinking water. High efficiencies, robust case construction of cast iron, and impeller construction of bronze makes these pumps an ideal selection for applications that require easy-to-maintain, reliable, long lasting pumps.

Features :

Pump Body:
Cast Iron body, with Bronze wear ring
Impeller:
Bronze enclosed impeller
Shaft Seal:
Type 21 Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts.
Port Size:
4 Inch 150 lb Flanged Discharge Port, 5 Inch 150 lb Flanged Inlet Port.
Motor Specs :
20 Horsepower, 1750 RPM, 208-230/460, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Parts and Accessories for Weinman model 4KL-200P24-Y34
