Weinman model # 4AEV-50S62 - Weinman # 4AEV-50S62 - Centrifugal Pump 5 HP, 3500 RPM

Weinman Pump 4AEV-50S62

Weinman # 4AEV-50S62

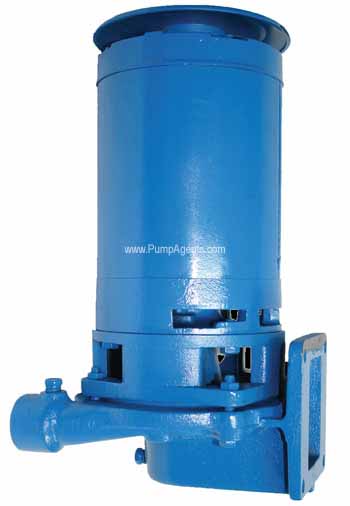

Weinman catalog # 4AEV-50S62, Centrifugal Pump and Motor unit. Cast Iron body, and Bronze enclosed impeller. Seal: Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts. Pump is Close Coupled to a 5 Horsepower, 3500 RPM, 115/230, Single Phase, TEFC (Totally Enclosed Fan Cooled) Motor. 1 Inch NPT Discharge Port, Inlet is Square Flanged Suction for Mounting to Condensate Tanks.

Price : $ 15678.23

Qty :

Same Day (2 in stock)



Product Information :

Whether used as condensate return or boiler feed units, types ACV, ADV, AEV and AFV pumps are mounted vertically for two reasons. 1. For proper motor elevation to eliminate danger of submergence if floor or pit is flooded. 2. To provide a low level suction inlet so that the impeller is sufficiently submerged even with minimum water level in the receiver - an important requirement in the handling of hot water. Sized for three times the normal required capacity in order to handle the abnormal rate of condensation resulting from starting a cold system. They have bronze impellers and are equipped with a mechanical shaft seal

Features :

Pump Body:
Cast Iron body
Impeller:
Bronze enclosed impeller
Shaft Seal:
Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ni-Resist Seal Seat, Stainless Steel metal parts.
Port Size:
1 Inch NPT Discharge Port, Inlet is Square Flanged Suction for Mounting to Condensate Tanks.
Motor Specs :
5 Horsepower, 3500 RPM, 115/230, Single Phase, TEFC (Totally Enclosed Fan Cooled).

Parts and Accessories for Weinman model 4AEV-50S62

Applications

Weinman Condensate Return Pumps are designed for the automatic return of hot water condensation from radiators and heating coils and the delivery of those fluids to low and high pressure boilers.
