Weinman3K1-250P12-Centrifugal Pump 25 HP ODP 3500 RPM Buna

Weinman # 3K1-250P12 - Centrifugal Pump 25 HP, 3500 RPM, ODP, Buna

Weinman Pump 3K1-250P12

Weinman # 3K1-250P12

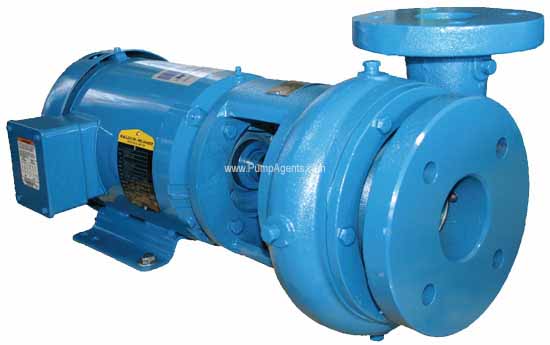

Weinman catalog # 3K1-250P12, Centrifugal Pump and Motor unit. Cast Iron body, with Bronze wear ring, and Bronze enclosed impeller. Seal: Type 21 Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ceramic Seal Seat, Stainless Steel metal parts. Pump is Close Coupled to a 25 Horsepower, 3500 RPM, 208-230/460, Three Phase, ODP (Open Drip Proof) Motor. 3 Inch 150 lb Flanged Discharge Port, 4 Inch 150 lb Flanged Inlet Port.

Price : $ 12564.76

Qty :

Same Day (2 in stock)



Product Information :

Weinman general service close coupled pumps are low cost pumping units that provide efficiency and dependability. These dependable pumps are a rugged design based on the most advanced principles of hydraulic engineering. Their compact design saves floor space while their adaptability permits maximum operating efficiency in any position, horizontal or vertical. The result is efficient operation with a modest initial investment and low operating and maintenance costs.

Features :

Pump Body:
Cast Iron body, with Bronze wear ring
Impeller:
Bronze enclosed impeller
Shaft Seal:
Type 21 Mechanical Shaft Seal with Buna Elastomers, Carbon Face, Ceramic Seal Seat, Stainless Steel metal parts.
Port Size:
3 Inch 150 lb Flanged Discharge Port, 4 Inch 150 lb Flanged Inlet Port.
Motor Specs :
25 Horsepower, 3500 RPM, 208-230/460, Three Phase, ODP (Open Drip Proof).

Parts and Accessories for Weinman model 3K1-250P12
