Shurflo 8095-902-260 Diaphragm Pump - 230 Volt Viton 1.5 GPM

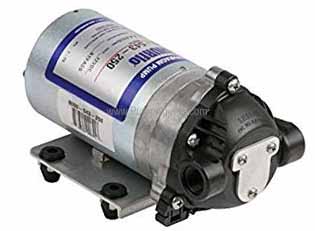

Shurflo # 8095-902-260 Diaphragm Pump with Bypass - 230 Volt AC

Shurflo Pump 8095-902-260

Shurflo # 8095-902-260

Shurflo catalog # 8095-902-260, Diaphragm Pump with 230 Volt AC Motor and 100 PSI Bypass. Nylon Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female. 1.5 GPM open flow.

Price : $ 306.55

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, and feature Chemical-resistant materials. This pump has an internal bypass. Can run dry without damage. Shurflo 8000 Series internal bypass pumps are ideal for applications where an automatic demand switch is not desired. Pumps with bypass will continue to run without damage once the bypass pressure is reached. They incorporate a triple chamber design with Viton elastomers to withstand the toughest applications. Perfect for spot sprayers, foam markers and transfer applications where smooth, consistent flow is needed.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Nylon
Impeller:
EPDM
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor / Amp Draw:
230 Volt AC, Permanent Magnet, P/N 11-160-10, Thermally Protected. Wire: 27 Inch x 18AWG wires with Switch.

Parts and Accessories for Shurflo model 8095-902-260


Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 21.77

Qty :

Can Ship : Same Day (2 in stock)


Diaphragm Kit :

Catalog # 94-395-16, DIAPHRAGM SANTO NYLON

Price: $ 21.50

Qty :

Can Ship : Same Day (2 in stock)


Drive Kit :

Catalog # 94-385-04, CAM ASSY 2.5

Price: $ 29.27

Qty :

Can Ship : Same Day (1 in stock)

Applications

Carbonator
