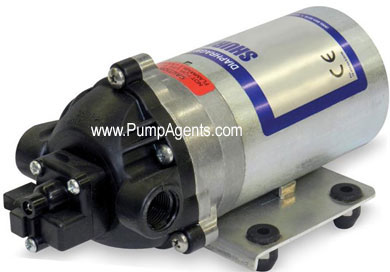

Shurflo # 8095-213-296 Diaphragm Pump with Automatic Switch

Shurflo Pump 8095-213-296

Shurflo # 8095-213-296

Shurflo catalog # 8095-213-296, Diaphragm Pump with 230 Volt AC Motor and Automatic Switch. Polypropylene Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.

Price : $ 586.11

Qty :

4 Weeks (out of stock)



Product Information :

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Polypropylene
Impeller:
EPDM
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
230 Volt AC, Permanent Magnet, P/N 11-160-02, Thermally Protected.

Parts and Accessories for Shurflo model 8095-213-296

Applications

Water Delivery
