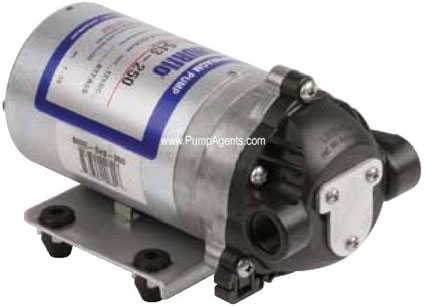

Shurflo # 8090-997-850 Diaphragm Pump with Bypass - 230 Volt AC

Shurflo Pump 8090-997-850

Shurflo # 8090-997-850

Shurflo catalog # 8090-997-850, Diaphragm Pump with 230 Volt AC Motor and Bypass. Poly Pump Body, Silicon Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.

Price : $ 574.83

Qty :

3 Weeks (out of stock)



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, and feature Chemical-resistant materials. This pump has an internal bypass. Can run dry without damage. Shurflo 8000 Series internal bypass pumps are ideal for applications where an automatic demand switch is not desired. Pumps with bypass will continue to run without damage once the bypass pressure is reached. They incorporate a triple chamber design with Viton elastomers to withstand the toughest applications. Perfect for spot sprayers, foam markers and transfer applications where smooth, consistent flow is needed.

BYPASS : A bypass pump may be used in application that would normally induce frequent start/stop of the motor, and thereby create a potential for overheating. Models equipped with an internal bypass are designed to pump at high pressure while at low flow rates. Bypass models equipped with a switch may operate for several seconds even though the discharge side has been closed off. Models equipped with a bypass only will continue to run until power is turned OFF.

Features :

Pump Body:
Poly
Impeller:
Silicon
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
230 Volt AC, Permanent Magnet, P/N 11-276-00, RFI Ball Bearing.

Parts and Accessories for Shurflo model 8090-997-850

Applications

Chemical/Transfer
