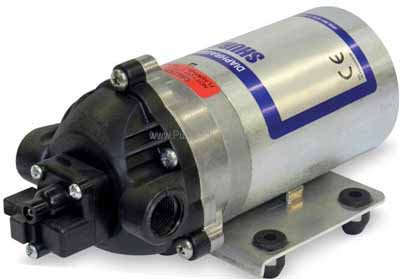

Shurflo catalog # 8090-802-278, Diaphragm Pump with 230 Volt AC Motor and Automatic Switch. Nylon VALVES Viton Pump Body, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female. 1.4 GPM open flow.
Price : $ 257.59
The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.
NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.
Check Valve Kit :
Catalog # 94-374-10, CHECK VALVE 2 WAY VITON
Price: $ 17.01
Upper Housing Kit :
Catalog # 94-379-01, NYLON UPPER HOUSING
Price: $ 29.84
Valve Assembly Kit :
Catalog # 94-391-25, VALVE KIT VITON NYLON
Price: $ 74.83
Drive Assembly Kit :
Catalog # 94-385-31, CAM 2.5 DEG FOR
Price: $ 79.99
