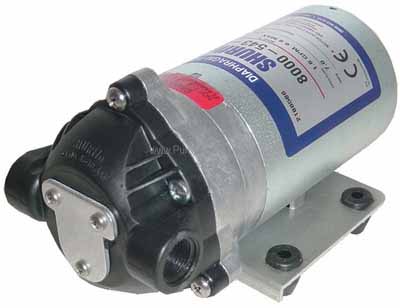

Shurflo # 8090-802-270 Diaphragm Pump with Bypass - 230 Volt AC

Shurflo Pump 8090-802-270

Shurflo # 8090-802-270

Shurflo catalog # 8090-802-270, Diaphragm Pump with 230 Volt AC Motor and Bypass. Nylon Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.

Price : $ 586.11

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, and feature Chemical-resistant materials. This pump has an internal bypass. Can run dry without damage. Shurflo 8000 Series internal bypass pumps are ideal for applications where an automatic demand switch is not desired. Pumps with bypass will continue to run without damage once the bypass pressure is reached. They incorporate a triple chamber design with Viton elastomers to withstand the toughest applications. Perfect for spot sprayers, foam markers and transfer applications where smooth, consistent flow is needed.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Nylon
Impeller:
Viton
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
230 Volt AC, Permanent Magnet, P/N 11-160-10, Thermally Protected. Wire: 27 Inch x 18AWG wires with Switch.

Parts and Accessories for Shurflo model 8090-802-270


Check Valve Kit :

Catalog # 94-374-10, CHECK VALVE 2 WAY VITON

Price: $ 17.31

Qty :

Can Ship : 2 Weeks (0 in stock)


Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 30.65

Qty :

Can Ship : Same Day (66 in stock)


Valve Assembly Kit :

Catalog # 94-391-25, VALVE KIT VITON NYLON

Price: $ 69.93

Qty :

Can Ship : 2 Weeks (0 in stock)


Drive Assembly Kit :

Catalog # 94-385-31, CAM 2.5 DEG FOR

Price: $ 77.01

Qty :

Can Ship : Same Day (3 in stock)

Applications

Soil Extraction
