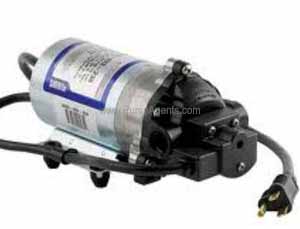

Shurflo # 8020-833-238BX Diaphragm Pump with Automatic Switch
Shurflo # 8020-833-238BX
Shurflo catalog # 8020-833-238BX, Diaphragm Pump with 115 Volt AC Motor and Automatic Switch. Nylon Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Discharge Port is 3/8 Inch NPT. Comes with 6 foot Cord.
Price : $ 586.11
Product Information :
Parts Page (click here)The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.
Product Specs :
Pressure Switch: control pressure is 100 PSI
Approvals: UL Listed - US & Canada
Features :
Parts and Accessories for Shurflo model 8020-833-238BX
Pressure Switch Kit :
Catalog # 94-375-15, 80-100 PSI SWITCH VITON
Price: $ 45.03
Check Valve Kit :
Catalog # 94-374-10, CHECK VALVE 2 WAY VITON
Price: $ 17.01
Upper Housing Kit :
Catalog # 94-379-01, NYLON UPPER HOUSING
Price: $ 29.84
Valve Assembly Kit :
Catalog # 94-390-15, VALVE VITON NYLON
Price: $ 74.83
Diaphragm Kit :
Catalog # 94-395-16, DIAPHRAGM SANTO NYLON
Price: $ 29.47
Drive Kit :
Catalog # 94-385-03, CAM ASSY 3.0
Price: $ 40.09
