Shurflo 8005-533-256 Pump with Switch and Bypass

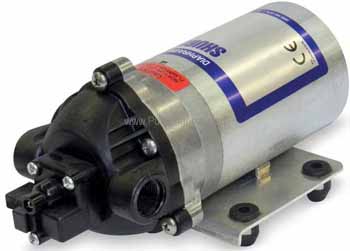

Shurflo # 8005-533-256 Diaphragm Pump with Automatic Switch and Bypass

Shurflo # 8005-533-256

Shurflo catalog # 8005-533-256, Diaphragm Pump with 115 Volt AC Motor and Switch and Bypass. Polypropylene Pump Body, NSF Viton Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch NPT, Discharge Port is 3/8 Inch NPT.

Price : $ 586.11

Click Here for PARTS

Product Information :

Parts Page (click here)

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Pressure Switch: control pressure is 55 PSI

Bypass: Pump also has Bypass

Approvals: UL Recognized - US & Canada, NSF

Features :

Pump Body:

Polypropylene

Impeller:

NSF Viton

Shaft:

Santoprene

Port Size:

Inlet Port is 3/8 Inch NPT, Discharge Port is 3/8 Inch NPT.

Motor Specs :

115 Volt AC. Wire: 19 Inch x 18AWG wires with Switch.

Shurflo # 8005-533-256 Diaphragm Pump with Automatic Switch and Bypass
