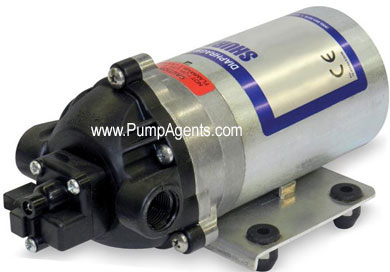

Shurflo 8000-943-136 Automatic Road Sweeper Pump

Shurflo # 8000-943-136

Shurflo catalog # 8000-943-136, Diaphragm Pump with 12 Volt DC Motor and Automatic Switch. Nylon Pump Body, EPDM Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread.

Price : $ 460.51

Product Information :

Product Manual PDF (view)

The 8000 series diaphragm pump is the most widely used Shurflo industrial pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming. They can be mounted in any position, and are designed for easy maintenance. The 8000 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Pressure Switch: Adjustable Shut-Off (Range 40-60 PSI). Factory Set at 60 PSI shut off, Turn On 40 PSI 5

Bypass: 95 PSI

Check Valve: (1-Way Operation) Prevents Reverse Flow

Liquid Temperature: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.

Prime: Self-Priming Up To 6.0 Ft. Vertical

Weight: 4.6 Lbs (2.08 Kg)

Duty Cycle: Continuous

Features :

Pump Body:

Nylon

Impeller:

EPDM

Shaft:

Santoprene

Port Size:

Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread.

Motor Specs :

12 Volt DC, Permanent Magnet, P/N 11-111-00.

Shurflo # 8000-943-136 Diaphragm Pump with Automatic Switch - 12 VDC
