Model # 8000-812-280 - 115 VAC w/ Bypass

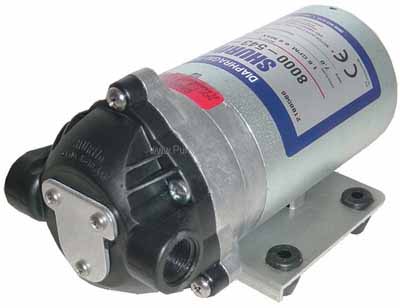

Shurflo Pump 8000-812-280

Shurflo # 8000-812-280

Shurflo catalog # 8000-812-280, 115 Volt AC, 1.4 GPM open flow, 100 PSI Bypass, Viton valves, Santoprene diaphragm. 3/8" NPT Nylon (Female) Ports

Price : $ 168.89

Qty :

Same Day (5 in stock)

Click Here for PARTS



Product Information :


Applications

PUMP DESIGN Positive Displacement 3 Chamber Diaphragm Pump CAM 2.5 Degree CHECK VALVE 2Way Op. Prevents Reverse Flow & 6 Ft. Head Forward Flow MOTOR Permanent Magnet, P/N 1115010, Thermally Protected VOLTAGE 115 VAC Nominal PRESSURE SWITCH None BYPASS 80 PSI LIQUID TEMPERATURE 180 Degrees Fahrenheit 82 Degrees Centigrade Max. PRIME SelfPriming Up To 11 Ft. Vertical,     Max. Inlet Pressure 30 PSI 2.1 Bar PORTS 3/8"18 NPT Female MATERIAL OF CONSTRUCTION     PLASTICS Nylon     VALVES Viton     DIAPHRAGM Viton     FASTENERS Zinc Plated Steel NET WEIGHT 4.9 Lbs 2.2 Kg DUTY CYCLE Intermittent TYPICAL APPLICATIONS Soil Extraction UL/CSA Recognized Component
