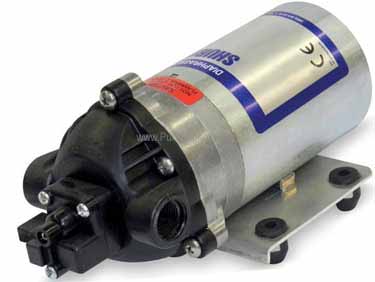

Shurflo # 8000-643-236 Diaphragm Pump with Automatic Switch - 12 VDC

Shurflo Pump 8000-643-236

Shurflo # 8000-643-236

Shurflo catalog # 8000-643-236, Diaphragm Pump with 12 Volt DC Motor and 60 PSI Automatic Demand Switch. Nylon Pump Body, Buna-n Valves, Geolast (Main), Buna-n (Switch) Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female. 1.5 GPM open flow.

Price : $ 132.24

Qty :

Same Day (3 in stock)

Click Here for PARTS



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, feature Chemical-resistant materials and are designed for heavy-duty spraying and fluid transfer applications. Pump can run dry without damage and has a built-in check valve. The 8000 Series diaphragm pump is SHURflo's most widely used agriculture pump. The unique conical valve design delivers high flow rates at maximum discharge pressures, making the 8000 Series the pump of choice for sprayers used on the farm or around the yard. These pumps deliver maximum performance in a wide range of applications.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Pressure Switch: Adjustable Shut-Off (Range 40-60 PSI). Factory Set at 60 PSI shut off, Turn On 45 PSI =t5 PSI

Bypass: 80 PSI

Liquid Temperature: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.

Prime: Self-Priming Up To 11 Ft. Vertical

Weight: 4.1 Lbs (1.9 Kg)

Duty Cycle: Continuous

Features :

Pump Body:
Nylon
Impeller:
Buna-n
Shaft:
Geolast (Main), Buna-n (Switch)
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor / Amp Draw:
12 Volt DC, Permanent Magnet, P/N 11-111-00. Wire: 12.5 Inch x 16AWG wires with Switch.

Parts and Accessories for Shurflo model 8000-643-236


Upper Housing Kit :

Catalog # 94-379-01, NYLON UPPER HOUSING

Price: $ 21.77

Qty :

Can Ship : Same Day (2 in stock)


Valve Assembly Kit :

Catalog # 94-390-10, VALVE BUNA NYLON

Price: $ 26.11

Qty :

Can Ship : Same Day (40 in stock)


Diaphragm Kit :

Catalog # 94-395-10, GEOLAST DIAPHRAGM

Price: $ 21.50

Qty :

Can Ship : Same Day (1 in stock)


Drive Kit :

Catalog # 94-385-03, CAM ASSY 3.0

Price: $ 29.27

Qty :

Can Ship : Same Day (1 in stock)

Applications

Agricultural Spraying
