Shurflo # 8000-543-926 Diaphragm Pump with Automatic Switch - 12 VDC

Shurflo Pump 8000-543-926

Shurflo # 8000-543-926

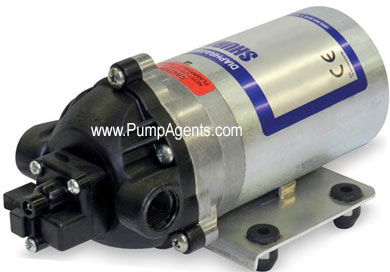

Shurflo catalog # 8000-543-926, Diaphragm Pump with 12 Volt DC Motor and Automatic Switch. Polypropylene Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.

Price : $ 460.51

Qty :

4 Weeks (out of stock)



Product Information :

SHURflo 8000 Series diaphragm pumps are Self-priming, feature Chemical-resistant materials and are designed for heavy-duty spraying and fluid transfer applications. Pump can run dry without damage and has a built-in check valve. The 8000 Series diaphragm pump is SHURflos most widely used agriculture pump. The unique conical valve design delivers high flow rates at maximum discharge pressures, making the 8000 Series the pump of choice for sprayers used on the farm or around the yard. These pumps deliver maximum performance in a wide range of applications.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Pressure Switch: Adjustable Shut-Off (Range 40-60 PSI). Factory Set at 60 PSI shut off, Turn On 45 PSI

Bypass: 65 PSI Max.

Check Valve: (1-Way Operation) Prevents Reverse Flow

Liquid Temperature: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.

Prime: Self-Priming Up To 5 Ft. Vertical

Weight: 4.1 Lbs (1.9 Kg)

Duty Cycle: Continuous

Features :

Pump Body:
Polypropylene
Impeller:
Viton
Shaft:
Santoprene
Port Size:
Inlet Port is 3/8 Inch-18 NPT Female, Discharge Port is 3/8 Inch-18 NPT Female.
Motor Specs :
12 Volt DC, Permanent Magnet, P/N 11-111-00.

Parts and Accessories for Shurflo model 8000-543-926

Applications

Agricultural Spraying
