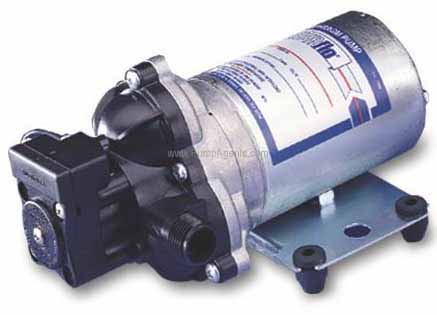

Shurflo # 2088-564-144 Diaphragm Pump - 230 Volt AC

Shurflo Pump



Product Information :

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Polypropylene
Impeller:
Santoprene
Shaft:
Santoprene
Port Size:
Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread.
Motor Specs :
230 Volt AC, Permanent Magnet, P/N 11-160-10, Thermally Protected. Wire: 27 Inch x 18AWG wires with Switch.

Parts and Accessories for Shurflo model 2088-564-144


Check Valve Kit :

Catalog # 94-237-00, CHECK VALVE

Price: $ 16.84

Qty :

Can Ship : Same Day (9 in stock)


Upper Housing Kit :

Catalog # 94-231-30, HOUSING POLY

Price: $ 20.93

Qty :

Can Ship : Same Day (15 in stock)


Diaphragm/Drive Kit :

Catalog # 94-238-03, DIAPHRAGM KIT

Price: $ 44.01

Qty :

Can Ship : Same Day (13 in stock)

Applications

Water Delivery
