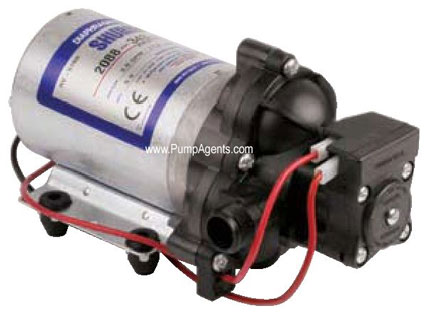

Shurflo # 2088-394-144 Diaphragm Pump - 115 Volt AC

Shurflo Pump 2088-394-144

Shurflo # 2088-394-144

Shurflo catalog # 2088-394-144, Diaphragm Pump. Polypropylene Pump Body, Viton Valves, Viton (Switch), Santoprene (Main) Diaphragm. Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread. 3 GPM open flow.

Price : $ 791.69

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.


NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Polypropylene
Impeller:
Viton
Shaft:
Viton (Switch), Santoprene (Main)
Port Size:
Inlet Port is 1/2 Inch - 14 Male Parallel Thread, Discharge Port is 1/2 Inch - 14 Male Parallel Thread.
Motor Specs :
115 Volt AC, Permanent Magnet, P/N 11-195-01, Thermally Protected.

Parts and Accessories for Shurflo model 2088-394-144

Applications

Agricultural Spraying
