Shurflo 2088-313-145 Automatic Pump - 12 VDC Viton/Santoprene 3.6 GPM

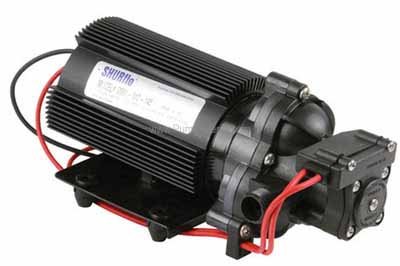

Shurflo # 2088-313-145 Diaphragm Pump with Automatic Switch - 12 VDC

Shurflo # 2088-313-145

Shurflo catalog # 2088-313-145, Diaphragm Pump with 12 Volt DC Motor and 45 PSI Automatic Demand Switch. Polypropylene Pump Body, Viton Valves, Santoprene Diaphragm. Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread. 3.6 GPM open flow.

Price : $ 314.24

Click Here for PARTS

Product Information :

Parts Page (click here)

Product Manual PDF (view)

SHURflo 2088 Series diaphragm pumps deliver reliable performance in high flow, moderate pressure applications. They are used in a variety of spraying, and transferring applications. They can be mounted in any position, and are designed for easy maintenance. The 2088 series pumps are self priming. Horizontal and vertical prime vary depending on the fluid viscosity and pump configuration.

Product Specs :

Positive Displacement 3 Chamber Diaphragm Pump

Pressure Switch: Adjustable from 30 to 50 PSI.. Factory Set at 45 PSI Shut-Off,

Bypass: 45 + 60 PSI Springs

Check Valve: (1-Way Operation) Prevents Reverse Flow

Liquid Temperature: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.

Prime: Self-Priming Up To 8.0 Ft. Vertical

Weight: 6.8 Lbs (3.1 Kg)

Duty Cycle: Continuous

Features :

Pump Body:

Polypropylene

Impeller:

Viton

Shaft:

Santoprene

Port Size:

Inlet Port is 1/2 Inch-14 Male Parallel Thread, Discharge Port is 1/2 Inch-14 Male Parallel Thread.

Motor Specs :

12 Volt DC, Permanent Magnet, P/N 11-185-06, Thermally Protected. Wire: 37 Inch x 14AWG Wire.

Shurflo # 2088-313-145 Diaphragm Pump with Automatic Switch - 12 VDC
