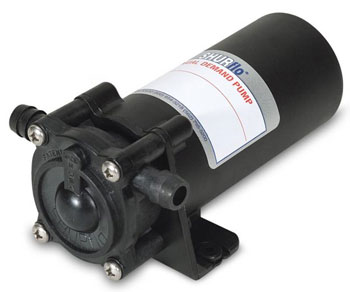

Shurflo # 100-030-10 Diaphragm Pump - 24 VDC

Shurflo Pump 100-030-10

Shurflo # 100-030-10

Shurflo catalog # 100-030-10, Low Flow Pump. Ryton R-4 Pump Body. Inlet Port is 3/8 Inch Barb, Discharge Port is 3/8 Inch Barb.

Price : $ 164.23

Qty :

3 Weeks (out of stock)


Product Information :

The 100 series is a positive displacement pump for flooded inlet, low volume, and low-pressure applications. Perfect where a low volume fill pump is needed, the unique wobbler design has no valves, and can pump a wide range of chemicals and fluids. Pump must be mounted below the supply tank to prime. Not for applications that require dry running.

NOTE : This pump is rated for Intermittent Duty : "Intermittent Duty" is defined as; operated and/or frequently started within a period of time that would cause the motor to reach its maximum thermal limits. Once the maximum thermal limit is obtained, the motor must be allowed to return to ambient temperature before resuming operation.

Features :

Pump Body:
Ryton R-4
Shaft Seal:
EPDM/Nitrile-Butadiene ROTOR INSERT- Brass
Port Size:
Inlet Port is 3/8 Inch Barb, Discharge Port is 3/8 Inch Barb.
Motor Specs :
24 Volt DC, Permanent Magnet, P/N 11-176-00.
