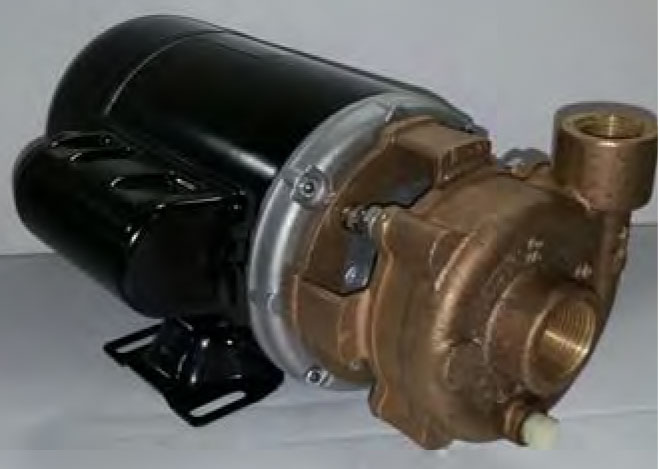

Scot Pump # B35066K344B03XX Marine Bronze Motorpump

The Scot Pump B35066K344B03XX is a Marine Bronze Centrifugal Pump and Motor unit, rated for a maximum flow of 40 GPM and 20 PSI, with All Bronze Construction, semi-open 3.44 inch Bronze Impeller, Buna Mechanical shaft seal, 1 inch NPT Suction port, 3/4 inch NPT Discharge port, and is close coupled to a 1/3 Horsepower, 3500 RPM, 115/230 volts, 1 phase, TEFC Totally Enclosed Fan Cooled electric motor. The Scot Pump B35066K344B03XX is a Marine Bronze Centrifugal Pump and Motor unit, rated for a maximum flow of 40 GPM and 20 PSI, with All Bronze Construction, semi-open 3.44 inch Bronze Impeller, Buna Mechanical shaft seal, 1 inch NPT Suction port, 3/4 inch NPT Discharge port, and is close coupled to a 1/3 Horsepower, 3500 RPM, 115/230 volts, 1 phase, TEFC Totally Enclosed Fan Cooled electric motor. This pump is a high-performance compact all-bronze marine centrifugal Motorpump engineered for continuous-duty performance in both freshwater and seawater environments. It is built with corrosion-resistant components including a bronze casing and impeller, stainless steel shaft, and Type 300 stainless hardware to ensure long-term durability. Its semi-open impeller handles solids up to 5/16 inch (7mm), making it suitable for applications where small debris might be present. The pump is direct-coupled to a single-phase, totally enclosed fan-cooled (TEFC) motor with sealed ball bearings and a built-in thermal protector, housed in an enclosed switch compartment. It is rated for up to 75 PSI system pressure. The mechanical seal features Buna, ceramic, and carbon elements. It operates at 29003450 RPM with dual-frequency (50/60 Hz) capability, this 1 inch x 3/4 inch NPT motorpump is an ideal, drop-in replacement for Oberdorfer model 104M in marine applications.
