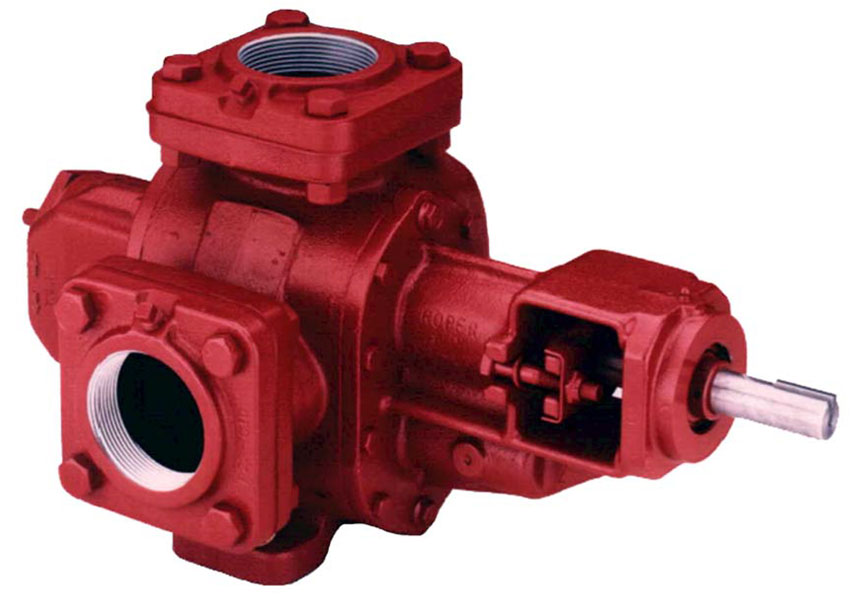

Roper Pump # 3611HBFRV Heavy Duty Gear Pump

Roper Pump 3611HBFRV

Roper # 3611HBFRV

Roper catalog # 3611HBFRV, Heavy duty Gear Pump end only, with outboard bearing, built in Relief Valve, Cast Iron construction, hardened Iron helical gears, Bronze bearings, packing seal, right angle 2 inch NPT Flanged ports, and is rated for up to 82.5 GPM, and 125 PSI at maximum shaft speed of 750 RPM.

Price : $ 2197.95

Qty :

Same Day (1 in stock)



Product Information :

The Roper Pump 3611HBFRV is a Heavy duty Gear Pump end only, with outboard bearing, built in Relief Valve, Cast Iron construction, hardened Iron helical gears, Bronze bearings, packing seal, right angle 2 inch NPT Flanged ports, and is rated for up to 82.5 GPM, and 125 PSI at maximum shaft speed of 750 RPM. The Roper Pump 3611HBFRV is a Heavy duty Gear Pump end only, with outboard bearing, built in Relief Valve, Cast Iron construction, hardened Iron helical gears, Bronze bearings, packing seal, right angle 2 inch NPT Flanged ports, and is rated for up to 82.5 GPM, and 125 PSI at maximum shaft speed of 750 RPM. This pump features heat treated cast-iron pumping gears that are accurately machined for quiet, efficient operation and long life. The four heavy duty sleeve bearings are special wear-resistant, high-lead bronze providing positive support to the pumping gears to ensure long, efficient service. Precise manufacturing tolerances provide minimum clearances for maximum pumping efficiency, and large, hardened steel dowel pins ensure positive alignment between the faceplate, case, and backplate. The standard shaft seal graphite packing is suited for general purpose applications, and for optimum performance, the gland must be adjusted to allow slight seepage.

Features :


Parts and Accessories for Roper model 3611HBFRV

Applications

This is a heavy duty general purpose gear pump used for mixing, blending, recirculating, fixed and mobile transfer. This pump operates smoothly and with equal efficiency in either direction of rotation. It effectively handles heavy, viscous materials such as asphalt, molasses, roofing compounds, and printing inks, as well as fuel oils, gasolines, and similar thin liquids.
