Micropump model # GLH-H21.JVS.6-M2CH15 - Magnetic Drive Gear Pump

Micropump Pump GLH-H21.JVS.6-M2CH15

Micropump # GLH-H21.JVS.6-M2CH15

Micropump catalog # GLH-H21.JVS.6-M2CH15, Magnetic Drive Gear Pump. Inlet Port is 3/4 inch NPT female, Discharge Port is 3/4 inch NPT female.

Price : $ 6904.96

Qty :

2 Weeks (0 in stock)



Product Information :

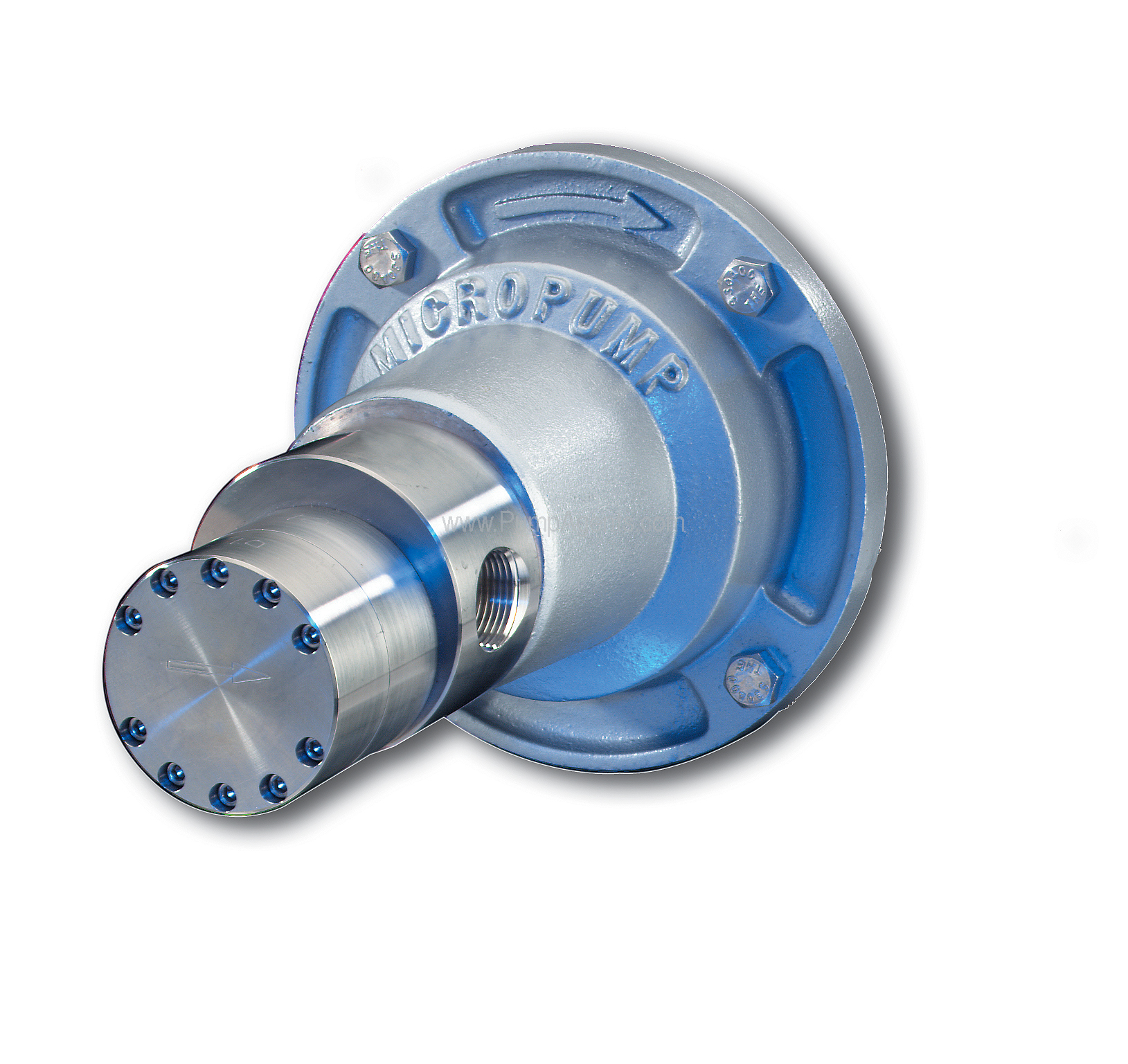

The Micropump GLH-H21.JVS.6-M2CH15 is a Magnetic Drive Gear Pump with 3/4 inch NPT female Ports, replacement pump end only without a Motor. This mag-drive gear pump head requires a IEC 71-B14 compatible motor, the driving magnet hub is sold separately. This GLH Series pump can handle tough fluid handling needs without taking up too much space. This cavity style gear pump provides smooth, pulseless delivery and can withstand system pressures to 103 Bar (1500 psi). This GLH Series pump delivers rugged, reliable performance for any high-precision pumping need. This pump is small and easy to use. It offers a smooth and pulseless delivery, chemical resistance, proven reliability, high-system pressure capability, and enhanced efficiency. It uses advanced pump technology, and a wide range of base, gear and static seal materials. It can be used in OEM mounting configurations. This cavity style magnetic drive gear pump uses helical shafted gears, sleeve bushings, and O-Ring seals. This pump can handle a maximum system pressure of 1500 psi (103 bar). The maximum viscosity of any liquid should be no more than 0.5 to 1500 cP. The maximum driver/motor speed of the pump head is 3450 RPM.
WEIGHT : The Micropump GLH-H21.JVS.6-M2CH15 weighs 8.6 Lbs.

Features :

Port Size:
Inlet Port is 3/4 inch NPT female, Discharge Port is 3/4 inch NPT female.

Applications

There are many applications that the MicroPump GLHH21.JVS.6M2CH15 are used in, where small, positivedisplacement magneticallydriven gear pumps are required. This pump is precisioncrafted, longwearing, reliable and precise, and is uniquely engineered to meet the worlds most challenging pump application requirements where streamlined solution design, impeccable performance and undeniable quality and precision are required. This pump is widely used for fluid handling across a number of industries, including Aero SPACEand Aircraft, Automotive, Biotechnology, Chemical Processing, Clinical and Analytical Lab, Electronics, Energy/Fuel, Environmental, Food and Beverage, General Industry, Medical Equipment and Devices, Paints and Inks, and Pharmaceutical and Cosmetics.
