March # 0135-0163-0200 Mag-Drive Centrifugal Pump and Motor 1/40 HP

March Pump 0135-0163-0200

March # 0135-0163-0200

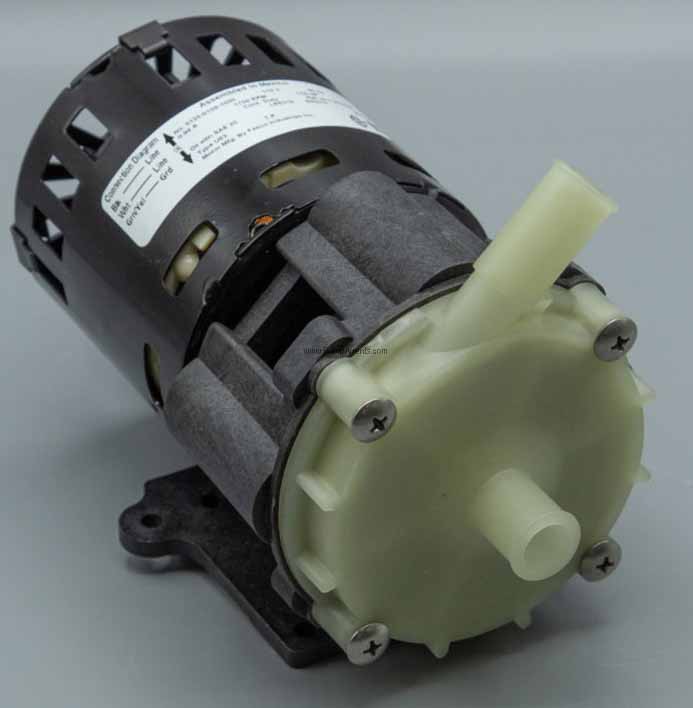

March catalog # 0135-0163-0200, Centrifugal Magnetic Drive Pump and Motor unit, with Polypropylene front housing, Polypropylene impeller, Carbon Filled Kynar rear housing, Carbon Filled Kynar shaft, Buna-N o-ring, Ceramic Magnet. Motor is 1/40 Horsepower, 1750 RPM, 230 Volts AC, Single Phase, and has a 3 foot long cord. Inlet Port is 5/8 inch Hose, Discharge Port is 5/8 inch Hose. Rated up to 6 GPM. Model # MDX-5/8 230V.

Price : $ 280.50

Qty :

Same Day (2 in stock)



Product Information :

The March 0135-0163-0200 is a Centrifugal Magnetic Drive Pump and Motor unit, with Polypropylene front housing, Polypropylene impeller, Carbon Filled Kynar rear housing, Carbon Filled Kynar shaft, Buna-N o-ring, Ceramic Magnet, 5/8 inch Hose by 5/8 inch Hose Ports, and is coupled to a 1/40 Horsepower, 1750 RPM, 230 Volt AC, Single Phase Motor that has a 3 foot long cord. This pump is a centrifugal magnetic drive pump, which eliminates the need for a shaft seal. This seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 6 gallons per minute at 1 foot, and its maximum head is 7 Feet (3PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, carbon filled Kynar (PVDF) Buna N, and Ceramic Magnet. The inlet connection is 5/8 inch smooth, and the outlet is 5/8 inch smooth. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March MDX-5/8 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. This pump is not self-priming, and lacks a suction lift, and requires a flooded suction - the liquid must flow naturally to the pump. It cannot be run dry because the impeller requires the liquid being pumped for lubrication. Do not operate the pump until liquid is inside of the pump and ever run the pump dry. The motor on this pump is U.L. listed and rated for continuous duty. Rated performance capacity is up to 6 GPM open flow, and up to 7 feet total dynamic head. At the maximum head of 7 feet, the flow will be lower than the rated capacity of 6 GPM. The maximum temperature for this pump is 190 degrees F.
DIMENSIONS : The dimensions of this pump are 6 inches wide, 7 inches high, 12 inches long.
WEIGHT : The March 0135-0163-0200 weighs 6 Lbs.

Features :

Port Size:
Inlet Port is 5/8 inch Hose, Discharge Port is 5/8 inch Hose .
Motor Specs :
1/40 Horsepower, 1750 RPM, 230 Volts AC, Single Phase. 3 foot long cord.

Applications

There are many applications that the March 013501630200 are used in. Typical applications for this pump include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning. The MDX5/8 has pumped Acetic Acid, Ammonium Hydroxide, Potassium Carbonate, Sodium Chloride, Sodium Cyanide, Sodium Nitrate, Zinc Sulfate, Fresh Water, Salt Water, and many more chemicals. Liquids containing ferrous metal fines should not be pumped. This pump may have to be modified to pump liquids or chemicals with specific gravities, viscosities, or elevated temperatures different then ambient water. A magnetic drive pump is sealless, preventing any leakage that is normally associated with a conventional seal pump. Not only does the absence of a seal prevent the leakage of potentially dangerous and expensive liquids, it reduces maintenance time spent on the pump. In any magnetic drive pump, there are only two moving parts, the drive magnet and the impeller. With only two moving parts, there is little to break in the pump, and this pump is serviceable with a screwdriver. The simpler the pump, the less chance there is for failure. A magnetic drive pump is your answer to for a long lasting, dependable, reliable pump. Install the pump as near to the suction source and as low as possible with a flooded suction. The Pump should be mounted horizontally on a foundation secured by anchor bolts on a flat, stable surface or supports which are suitable to prevent movement of the pump and motor when in operation. It is advisable to mount the motor on a dampening/insulation surface to reduce noise and vibration caused by the moving components while operation. Always ensure that the outlet port is higher than the inlet port. This allows a path for the air to escape through. If the outlet is not higher than air can build up and may cause problems within the system. The pump should never be mounted vertically with the pump head at the lowest point. This will create an air pocket within the pump chamber and may cause problems.

Install the pump as near to the suction source and as low as possible with a flooded suction. The Pump should be mounted horizontally on a foundation secured by anchor bolts on a flat, stable surface or supports which are suitable to prevent movement of the pump and motor when in operation. It is advisable to mount the motor on a dampening/insulation surface to reduce noise and vibration caused by the moving components while operation. Always ensure that the outlet port is higher than the inlet port. This allows a path for the air to escape through. If the outlet is not higher than air can build up and may cause problems within the system. The pump should never be mounted vertically with the pump head at the lowest point. This will create an air pocket within the pump chamber and may cause problems.
