MP # 50724 HTO 300 Pump and Motor unit 15 HP

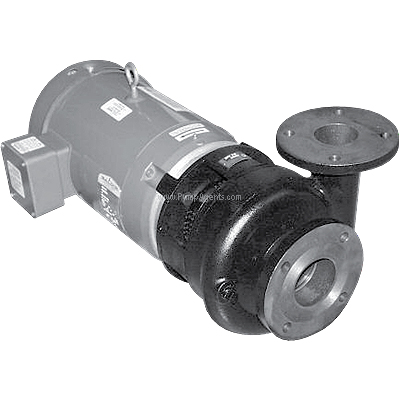

The MP 50724 is a Ductile Iron HTO 300 series Hot Oil Centrifugal Pump and Motor unit, with 6.5 inch Diameter Impeller, 3 inch by 2-1/2 inch ANSI 150 lb. flat flange Ports, close coupled to a 15 Horsepower, 230/460 Volts, Three Phase Motor. Versatile enough to be mounted vertically or horizontally, this end suction centrifugal pump was created to operate at high temperatures up to 650 F (343 C). Applications for this hot oil pump include the food, processing, chemical, and plastic industries. Internal technology utilizes ambient air as its cooling source to reduce the operating temperature of the HTO 300. An electric motor for this hot oil pump is optional.
